Victron Centaur Charger 24/40 (3) 24V 40A battery charger 3 outputs
Victron Energy Centaur 24/40 (3) – High-Quality Battery Charger
The Centaur 24/40 (3) from Victron Energy is a powerful and reliable battery charger specifically designed for 24V batteries. With three charging outputs and a maximum charging current of 40A, this device is ideal for various applications, no matter where you are.
Key Features
Click here for the technical specifications
- For 24V battery voltage, IP20 protection class
- Victron part number: CCH024040000
- Three battery charging outputs, each can deliver a full 40A charging current (maximum total charging current = 40A)
- Suitable for batteries with a capacity of 160Ah – 400Ah
- Three-stage IUoU charging algorithm
- Universal 90 – 265V AC input for mains connection, works at 50 Hz and 60 Hz
- Suitable for charging GEL, AGM, and lead-acid batteries
Quality without Compromise
The aluminum housing with an epoxy powder coating provides optimal protection against heat, moisture, and salt-laden atmosphere. The stainless steel mounting parts and corrosion-protected circuit boards ensure a long service life. Temperature sensors ensure that all components operate within safe limits and automatically adjust the output current under extreme conditions.

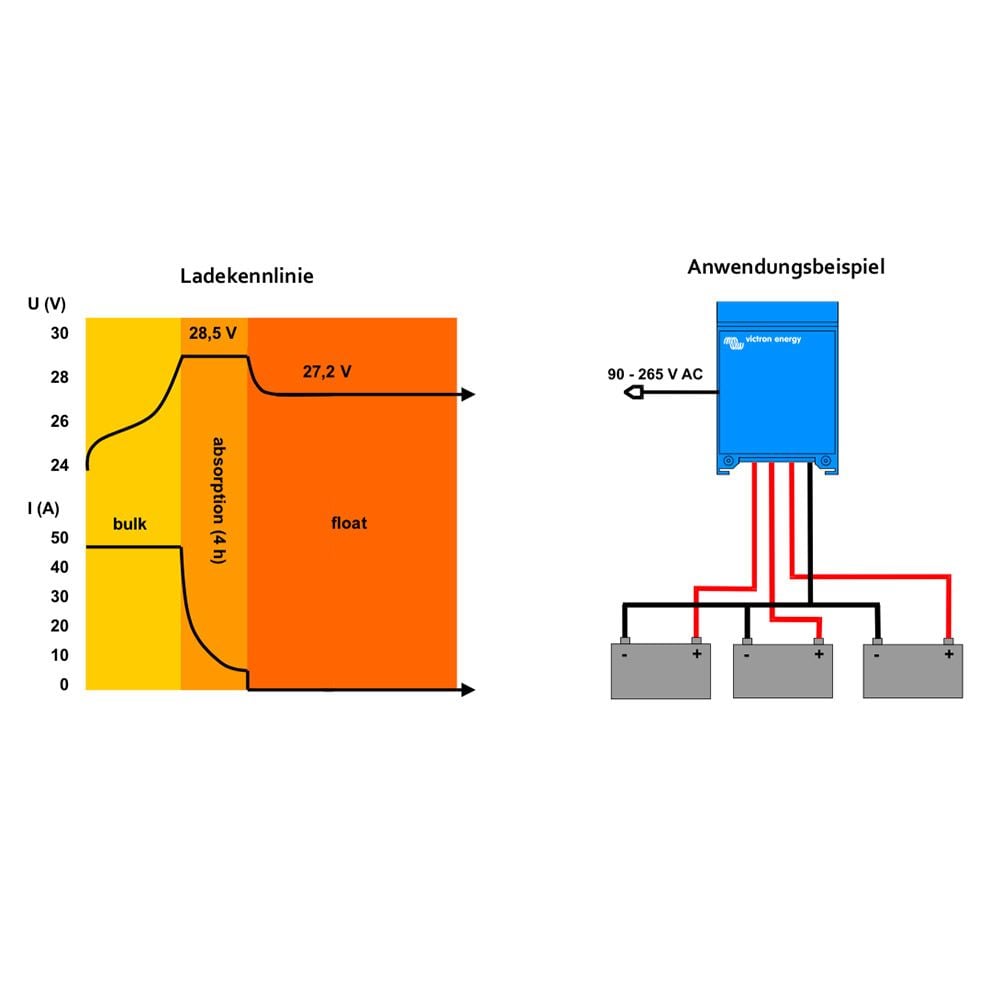

Three-Stage Charging Algorithm with Temperature Compensation
The charging process occurs in three phases: Initially, charging occurs with a constant current (Bulk) until the charging current has dropped to 70% of the rated value. This is followed by a four-hour constant voltage phase, followed by a maintenance charging phase. The charging voltage is regulated by an internal temperature sensor to ensure optimal charging conditions.
Versatile Use
With the Centaur 24/40, you can use various battery types. The default setting is optimized for gel batteries, but you can switch to lead-acid or AGM batteries using the DIP switch.
Scope of Delivery
- 1x Victron Energy CCH024040000 Centaur 24/40 (3)
- 1x Installation manual
