Victron Centaur Charger 24/60 (3) 24V 60A battery charger 3 outputs

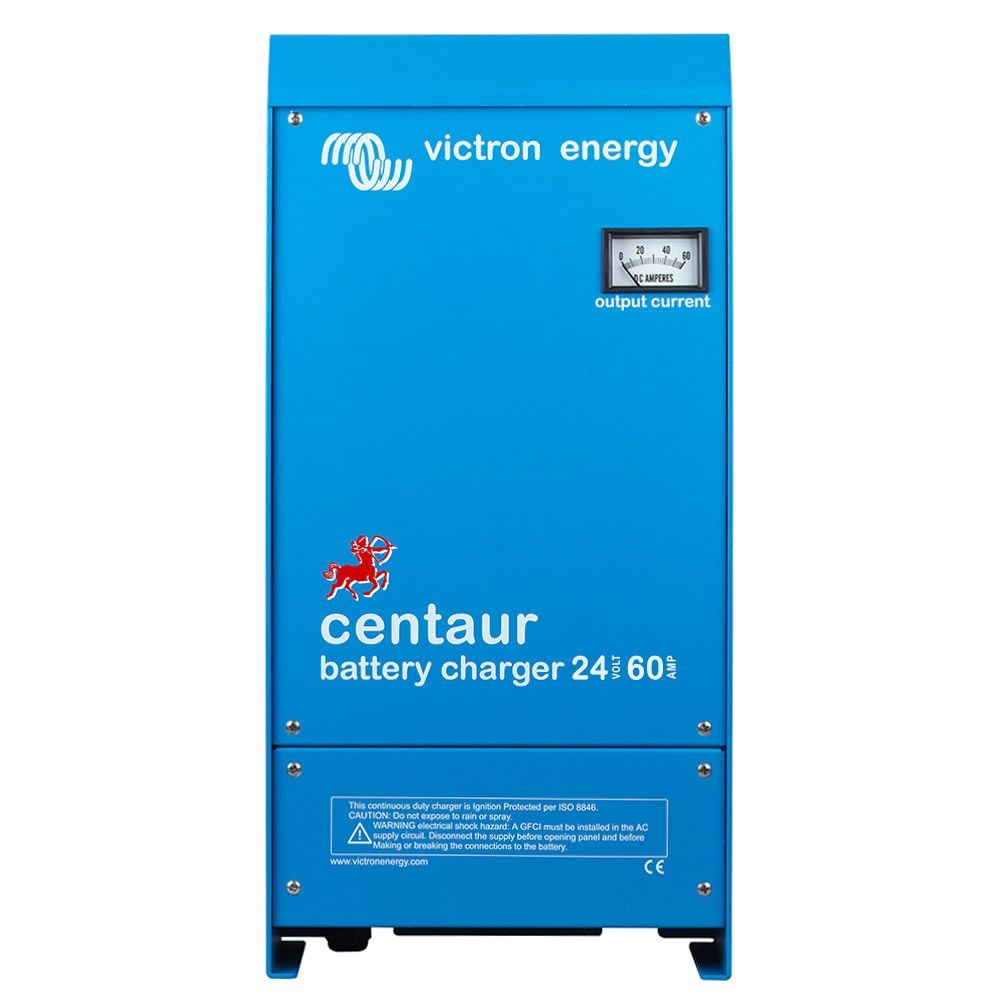

Victron Energy Centaur 24/60 (3) - High-Quality Battery Charger
The Centaur 24/60 (3) from Victron Energy is a top-class battery charger specifically designed for 24V batteries. With three charging outputs and a maximum charging current of 60A, this device offers flexible distribution of power to all outputs. No matter where you are, the wide input voltage range of 90-265 V AC allows the Centaur 24/60 (3) to be used without special settings.
Key Features at a Glance
Click here for technical details
- For 24V battery voltage, IP20 protection class
- Victron part number: CCH024060000
- 3 battery charging outputs, each capable of delivering full 60A charging current (maximum total charging current = 60A)
- Suitable for batteries with a capacity of 240Ah – 600Ah
- Three-stage IUoU charging characteristic
- Universal 90 – 265V AC input for grid connection, works at both 50 Hz and 60 Hz
- Suitable for charging gel, AGM, and lead-acid batteries
Quality Without Compromise
The Centaur 24/60 is housed in a robust aluminum casing with epoxy powder coating, providing protection against condensation. The stainless steel mounting parts make it particularly durable, even under extreme conditions such as heat, humidity, and salty atmospheres. Additionally, the circuit boards are protected against corrosion with a special acrylic coating.

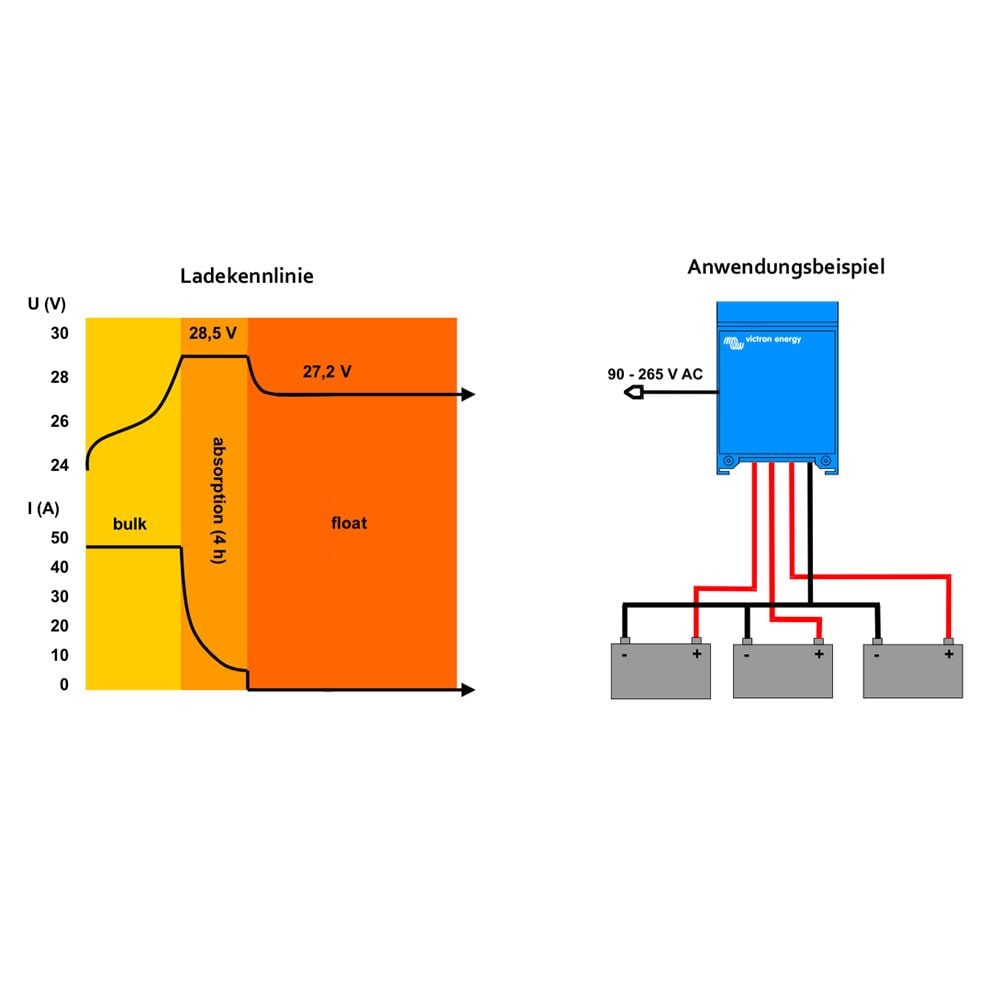

Three-Stage Charging Characteristic with Temperature Compensation
The charger operates in three phases: First, it charges with constant current (Bulk) until the charging current drops to 70% of the nominal value. This is followed by a four-hour constant voltage phase, ending with a maintenance charging phase. The charging voltage is regulated by an internal temperature sensor that adjusts the voltage according to the temperature.
Versatility in Battery Choice
Various battery types can be used with the Centaur 24/60. The default setting is for gel batteries, while other batteries (lead-acid or AGM) can easily be switched via a DIP switch on the device.
Delivery Scope
- 1x Victron Energy CCH024060000 Centaur 24/60 (3)
- 1x Installation manual
