Victron Cyrix-ct 12V/24V-120A Battery Coupler Set

Victron Energy Cyrix-ct Battery Coupler Set

The Cyrix-ct Battery Coupler Set from Victron Energy (MPN CYR010120110R) allows you to easily integrate a second or third battery system into your car, boat, or RV. With this set, you receive all necessary components for connection to ensure that your batteries always remain charged.

Product Features

• Complete Set: Cables, Lugs, and Mounting Material Included
• Effortlessly Add a Second or Third Battery System
• Intelligent Battery Monitoring to Prevent Unnecessary Switching Operations
• Automatic Voltage Detection for 12V or 24V Systems
• Minimal Voltage Loss

Technology and Functions

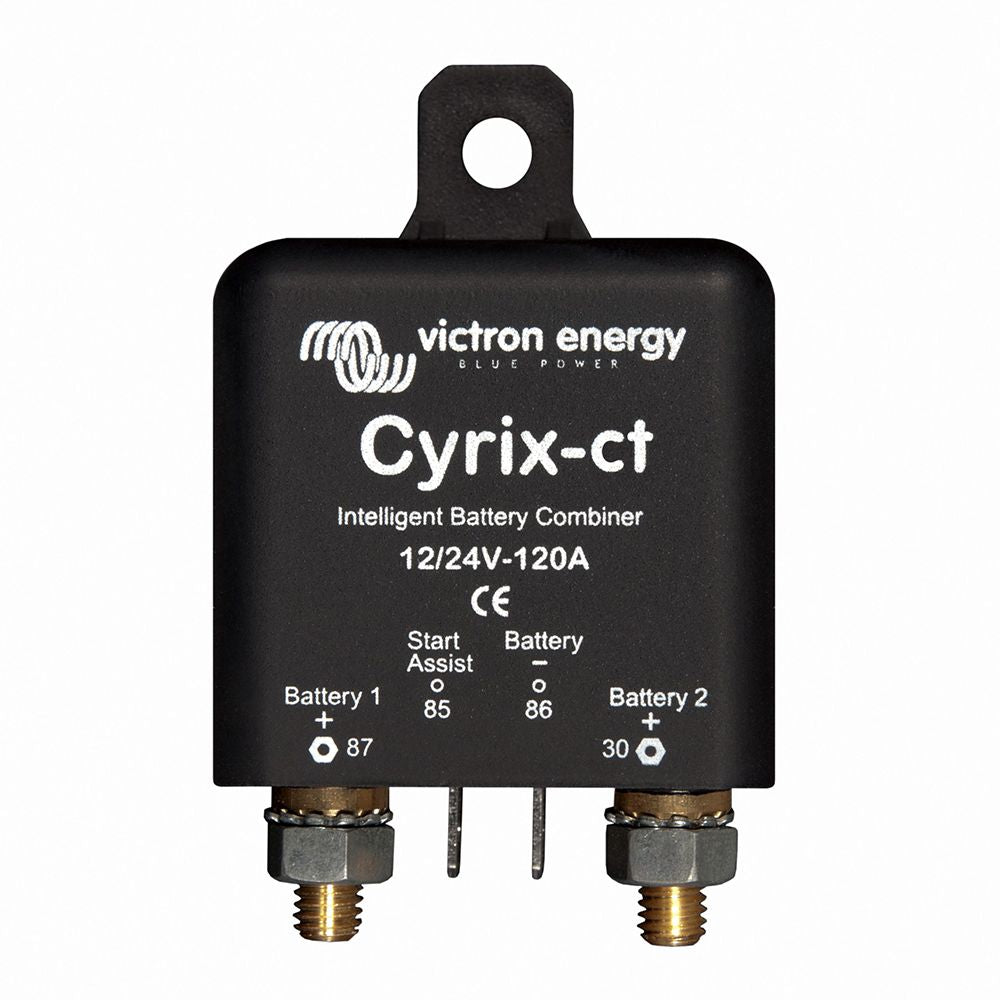

The Cyrix Battery Coupler is a powerful microprocessor-controlled relay that automatically connects batteries in parallel when one of them reaches a certain voltage value. If the voltage falls below the float voltage value, the coupler disconnects the batteries again. This eliminates the need for isolation diodes, and voltage loss remains almost zero, meaning that the output voltage of your chargers does not need to be increased.

In a typical setup, the alternator is directly connected to the starter battery. The auxiliary battery, as well as other batteries, are linked to the starter battery via the Cyrix battery coupler. When the Cyrix detects that the starter battery has reached the required voltage, it switches on and enables parallel charging of the other batteries.

The intelligent battery monitoring ensures that switching does not occur unnecessarily often. The Cyrix-ct analyzes voltage trends and only changes its state when the voltage has stabilized over a certain period.

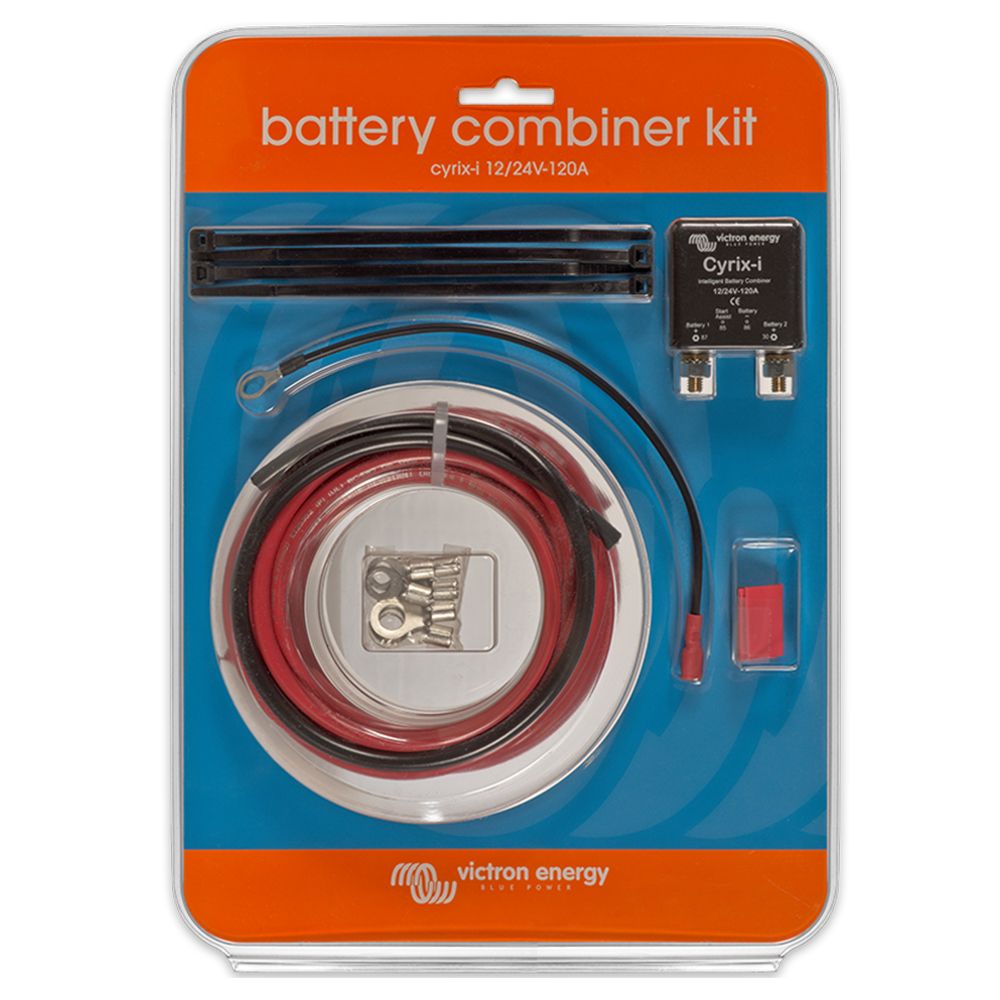

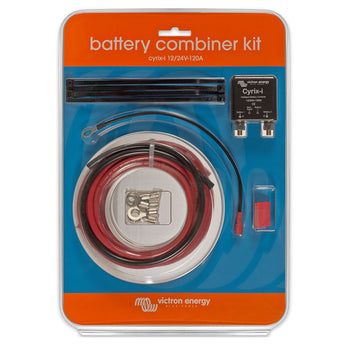

Scope of Delivery

• 1x Victron Battery Coupler Cyrix-ct 12V/24V 120A
• 1x 6m 10mm² Battery Cable Red
• 1x 0.5m 10mm² Battery Cable Black
• 1x 0.2m 1.5mm² Battery Cable with Plug and M8 Cable Lug
• 2x M8 Cable Lug with Insulating Sleeve
• 4x M6 Cable Lug with Insulating Sleeve
• 4x Cable Ties 150mm
