Offgridtec® basicPremium-L 100W Solar System 12V Complete System
basicPremium-L 100W Solar System 12V
The basicPremium-L 100W Solar System 12V is the perfect solution for everyone looking for a reliable and powerful solar system. Equipped with a high-quality monocrystalline 100 W V2 solar module and a user-friendly PWM-12/24-20A charge controller with LCD display, this set offers everything you need to charge your battery with self-produced solar power.
High-Quality Basic Set For Various Applications
This solar set is ideal for use in garden sheds, garages, or mobile applications. It contains all basic components for a self-sufficient solar power system and is characterized by high quality and durability. The 100W V2 solar module is equipped with the best monocrystalline cells and is produced according to the highest standards. The connection cables are also "made in Germany" and guarantee the highest connection quality.
Applications
- 12V DC power supply in the garden shed or allotment garden
- Self-sufficient systems for outdoor lighting applications
- Monitoring and communication systems or weather stations
- Charging of smartphones, tablets or other devices with 12V / 5V DC power supply

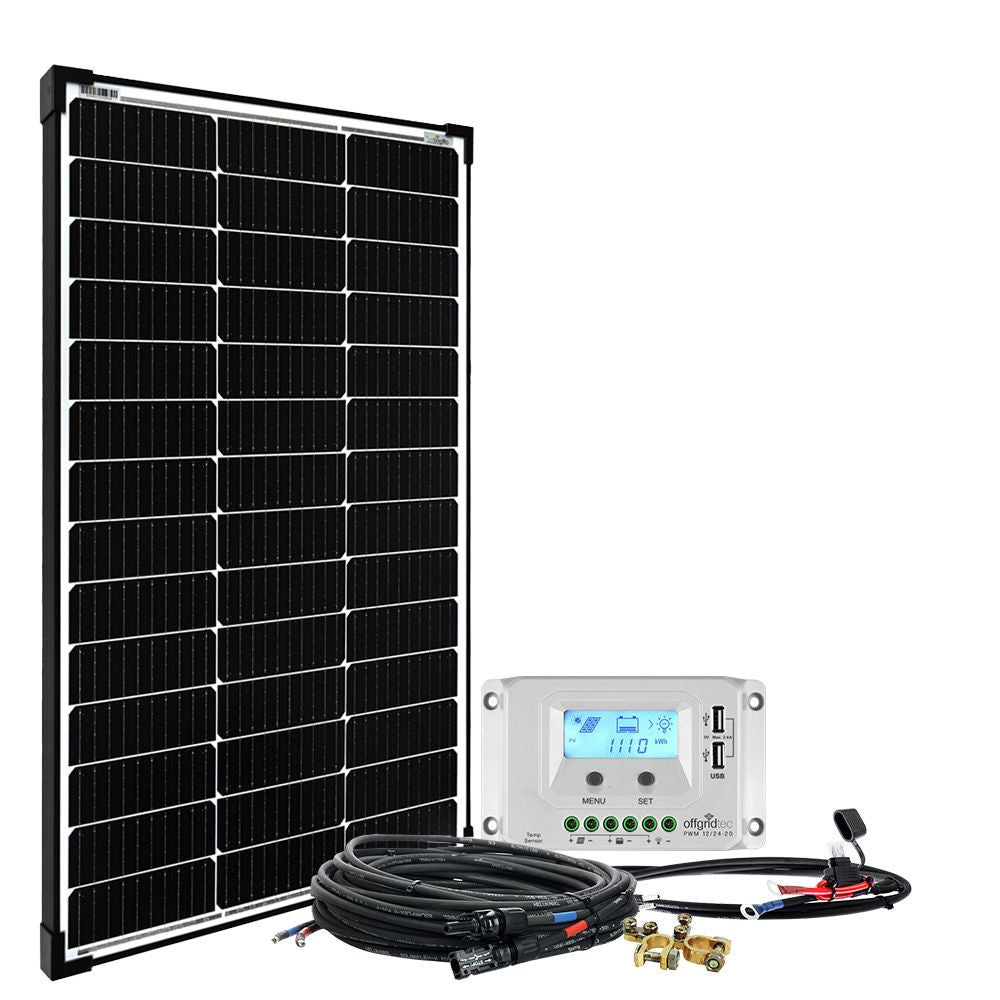

Components Of The basicPremium-L 100W Solar System 12V

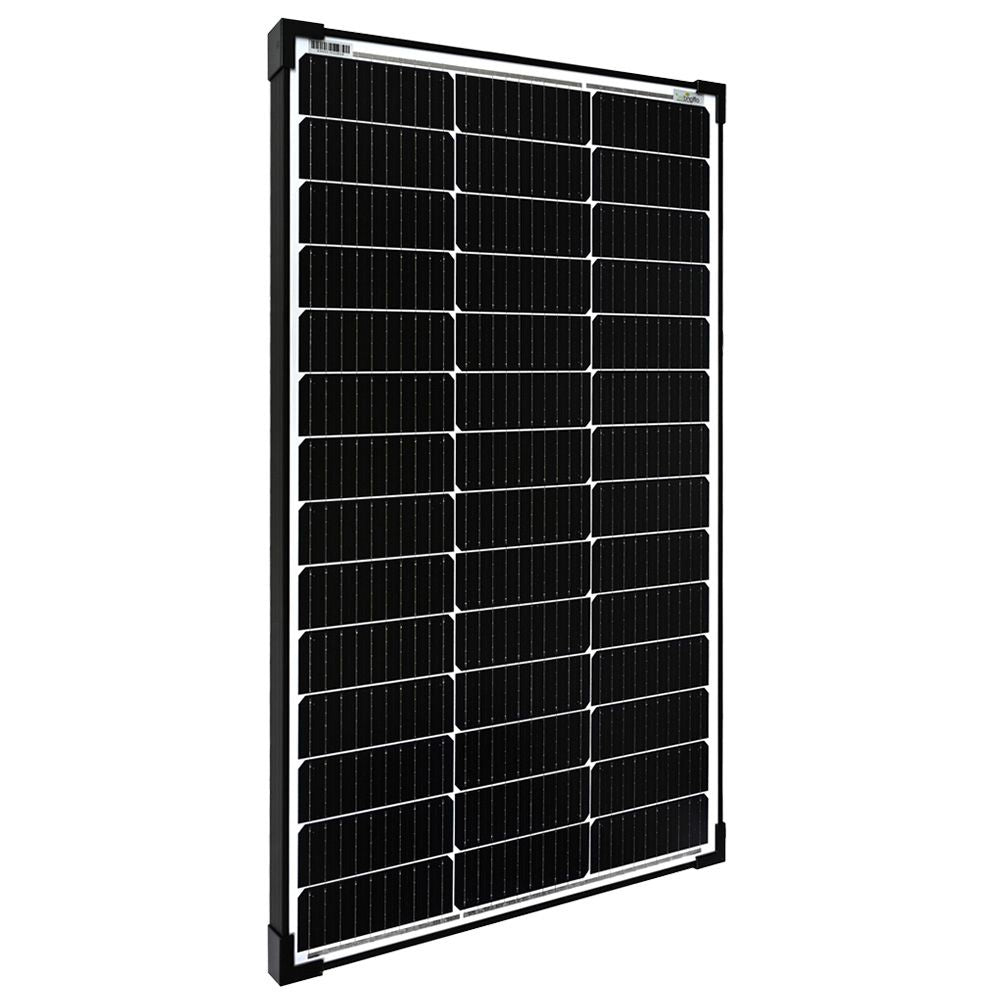

Offgridtec MONO 100W V2 Solar Panel
Rated Power: 100 Wp, Part Number: 3-01-018385
Operating Voltage (Vmp): 23.9 V, Operating Current (Imp): 4.2 A
Equipped with high-quality monocrystalline cells
Integrated bypass diode minimizes power loss in case of shading

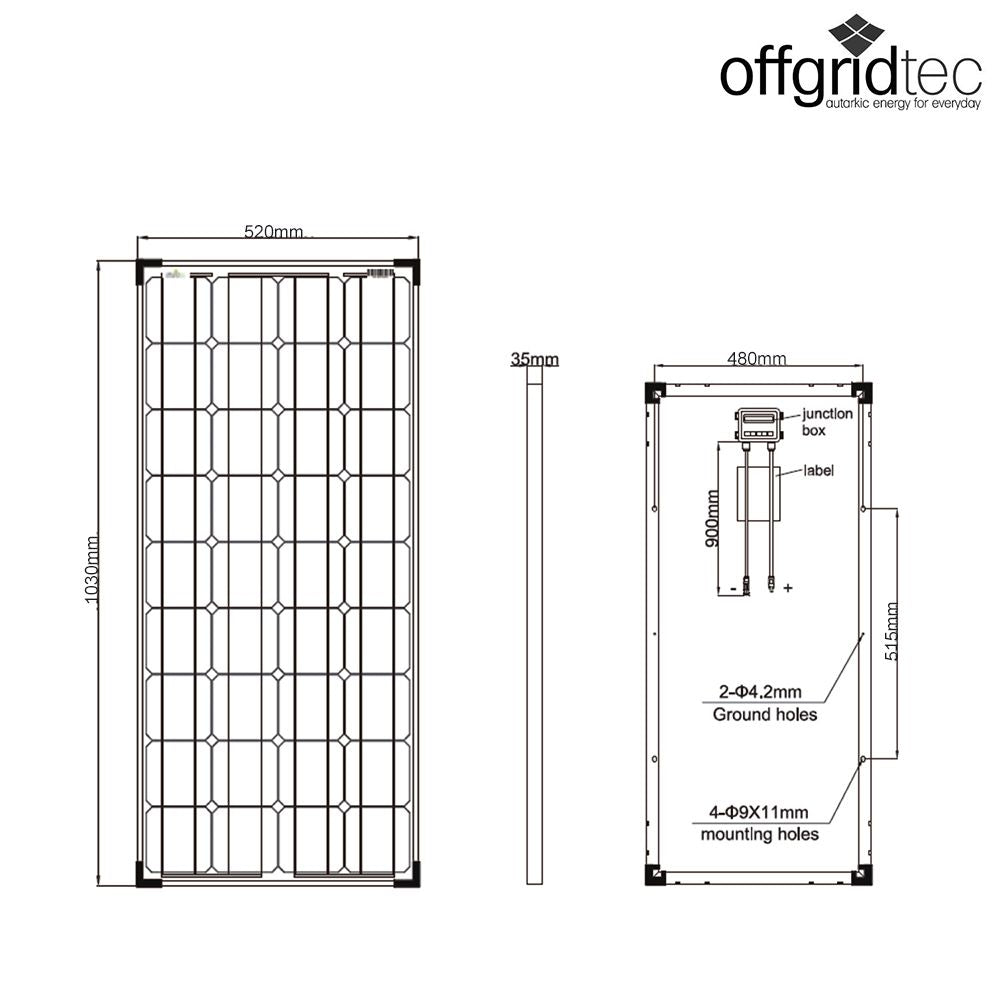

Dimensions (WxLxH): 925 x 560 x 35 mm, Weight: 6.22 Kg

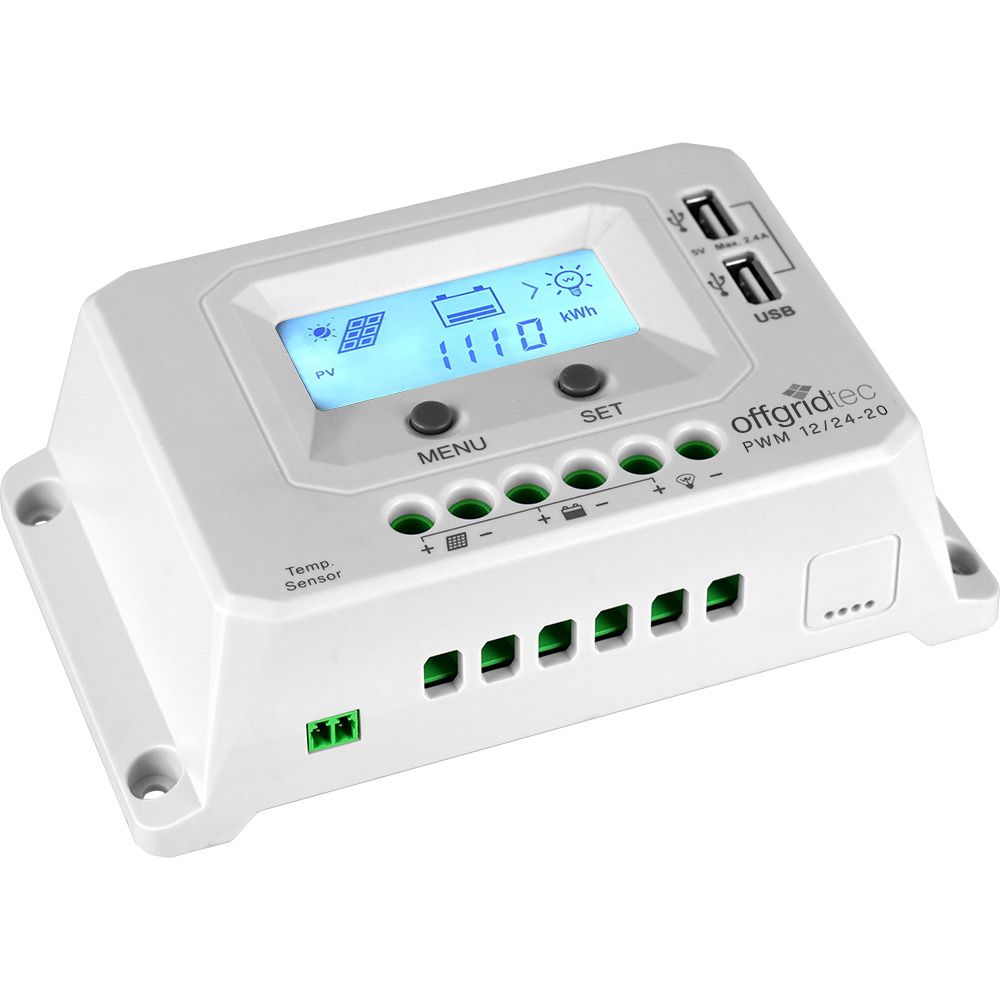

PWM-12/24-20 Pro Solar Controller
Max. Charging Current: 20 A, max. PV Power: 260 W / 520 W
Modern, 3-stage PWM charge regulation for efficient charging
3 battery types adjustable: AGM, GEL, liquid lead-acid
Large LCD display with numerous display options
2 USB Ports with maximum output power of 2.4A

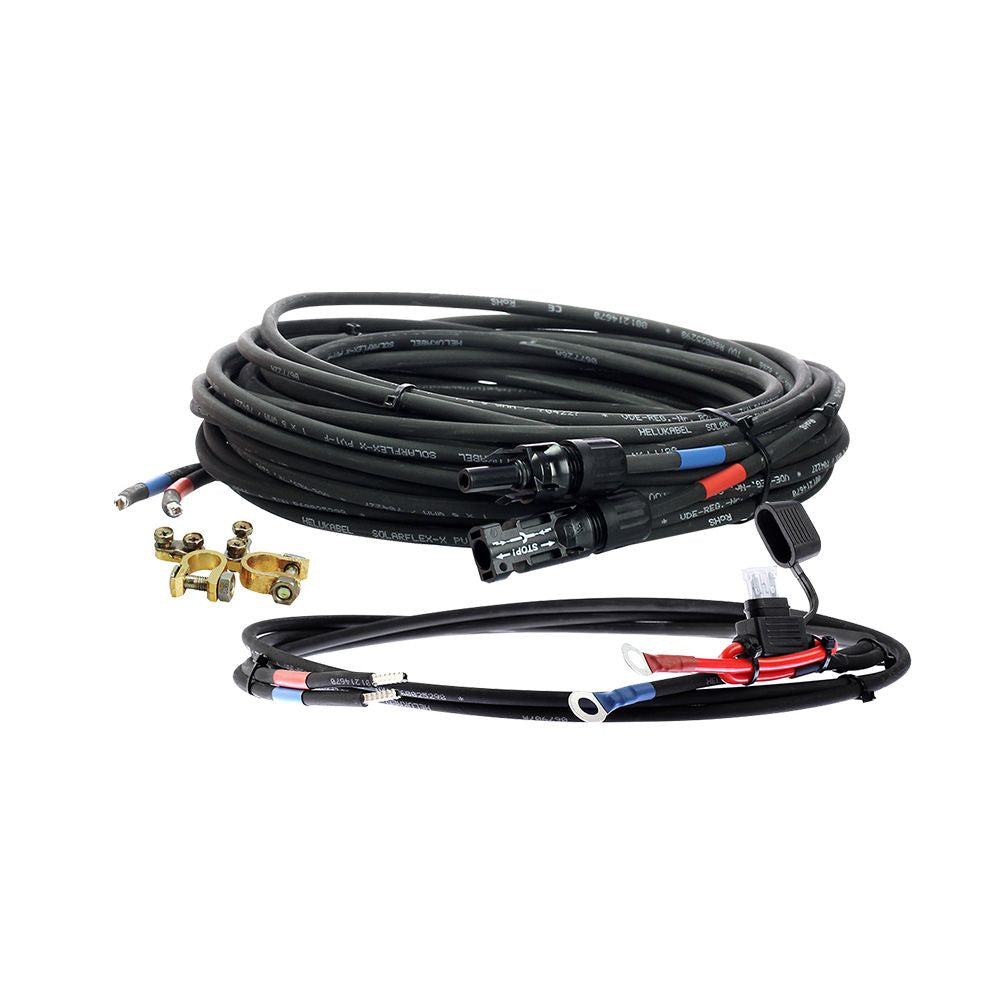

8m 2x6mm² Solar Connection Cable
Plug & Play - immediately ready for use
MC4 connectors on the solar module side
Wire Cross-Section: 2x6mm², Length: 8m
1.5m 2x6mm² Battery Connection Cable
Plug & Play - immediately ready for use
Wire Cross-Section: 2x6mm², Length: 1.5m
Including flat fuse holder with 30 A ATO fuse
Flexible And Easy To Install
Installation is child's play and also suitable for beginners. All cables are ready for connection, so you can simply connect the components and start power production immediately.
Expandable And Customizable
The system can be individually adapted and modified to meet your requirements. Ask our technical sales for more information and possible costs.
Scope Of Delivery
- 1x basicPremium-L 100W 12V Solar System
- 1x User Manual
- Including all components listed above
