Victron EasySolar-II 24/3000/70-32 MPPT 250/70 GX All-In-One Solar Solution
Victron Energy EasySolar-II GX

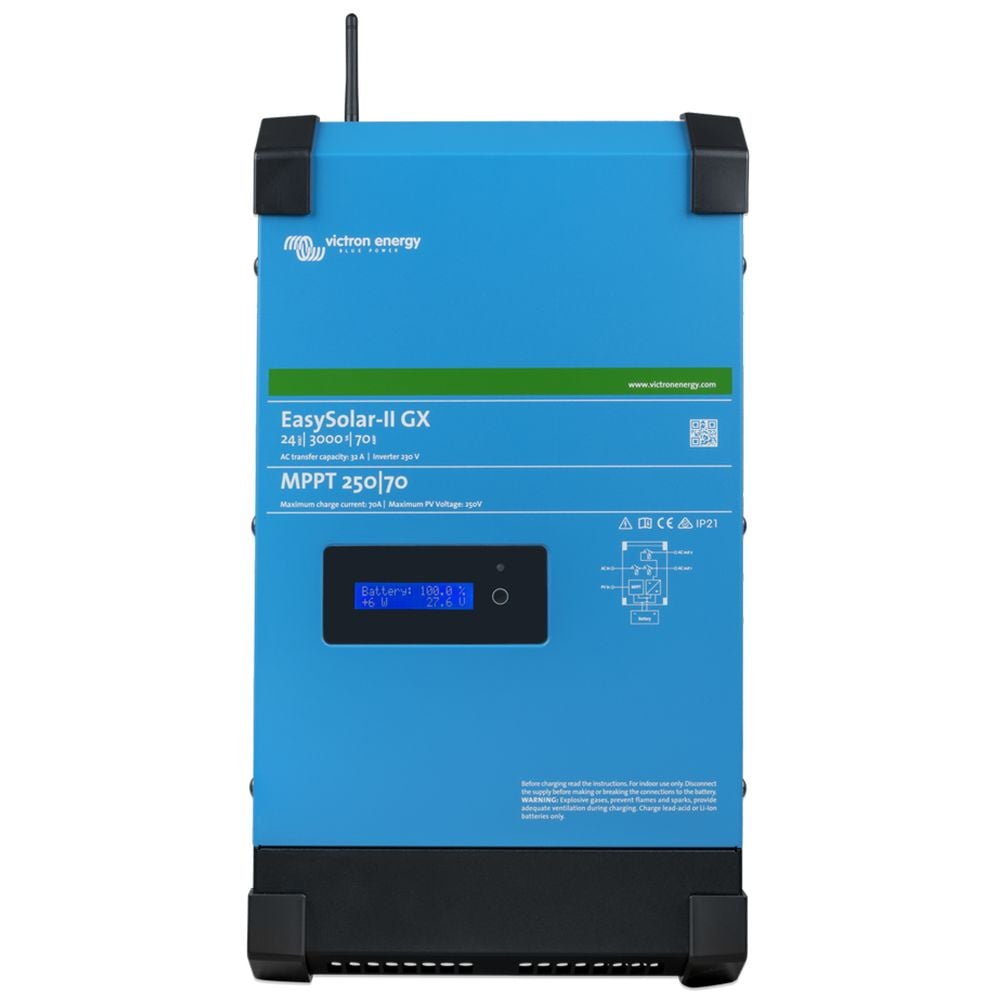

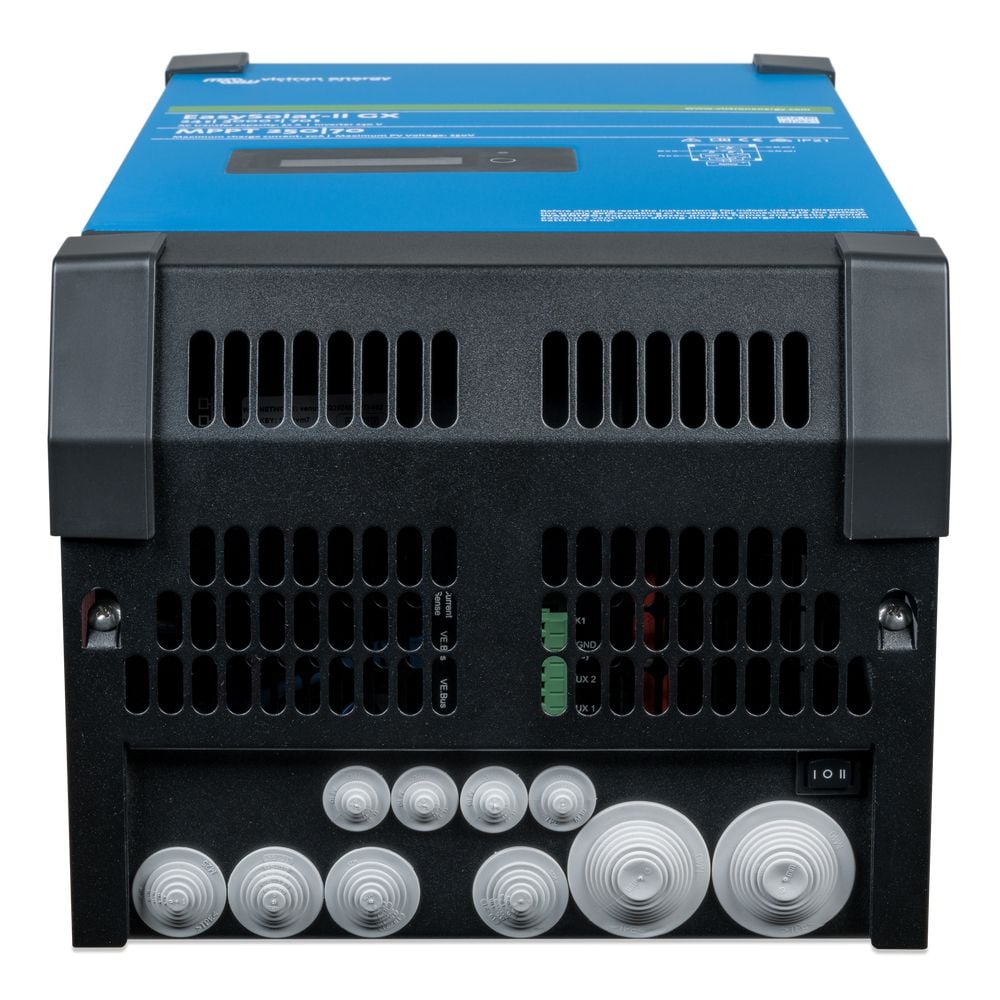

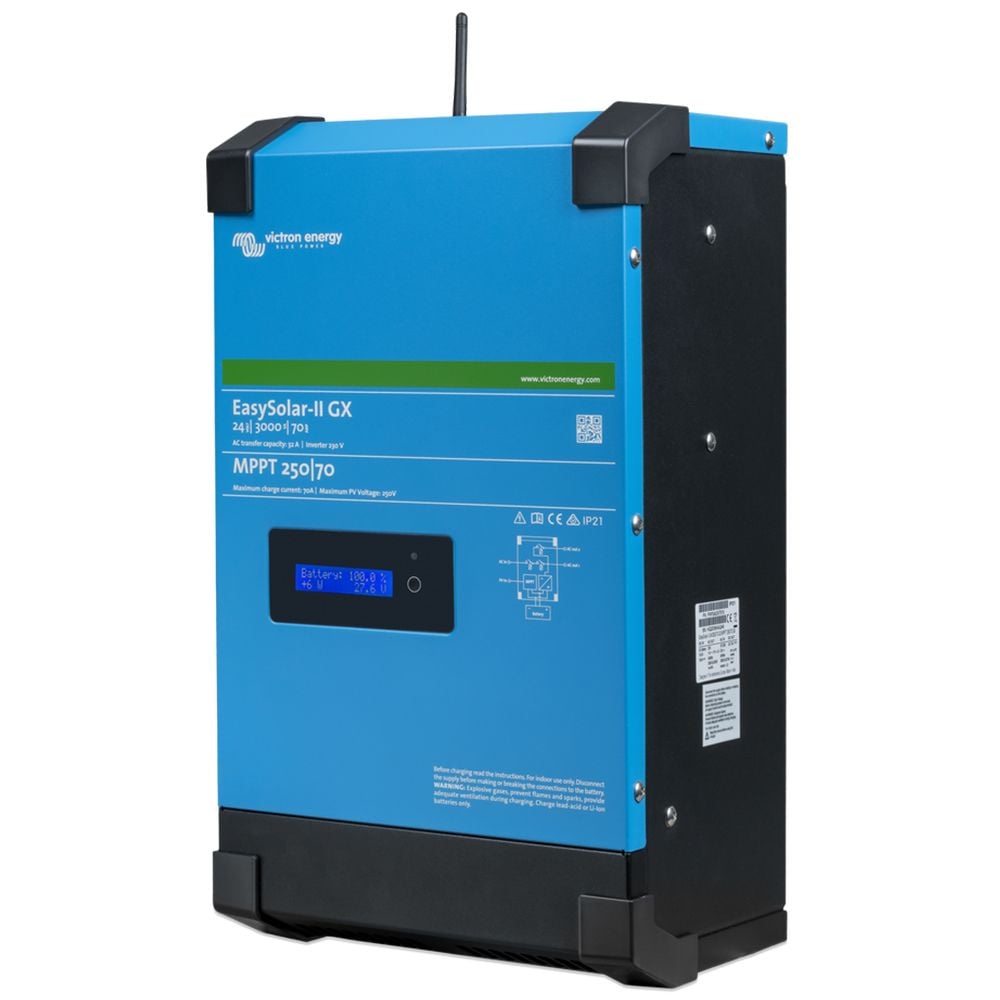

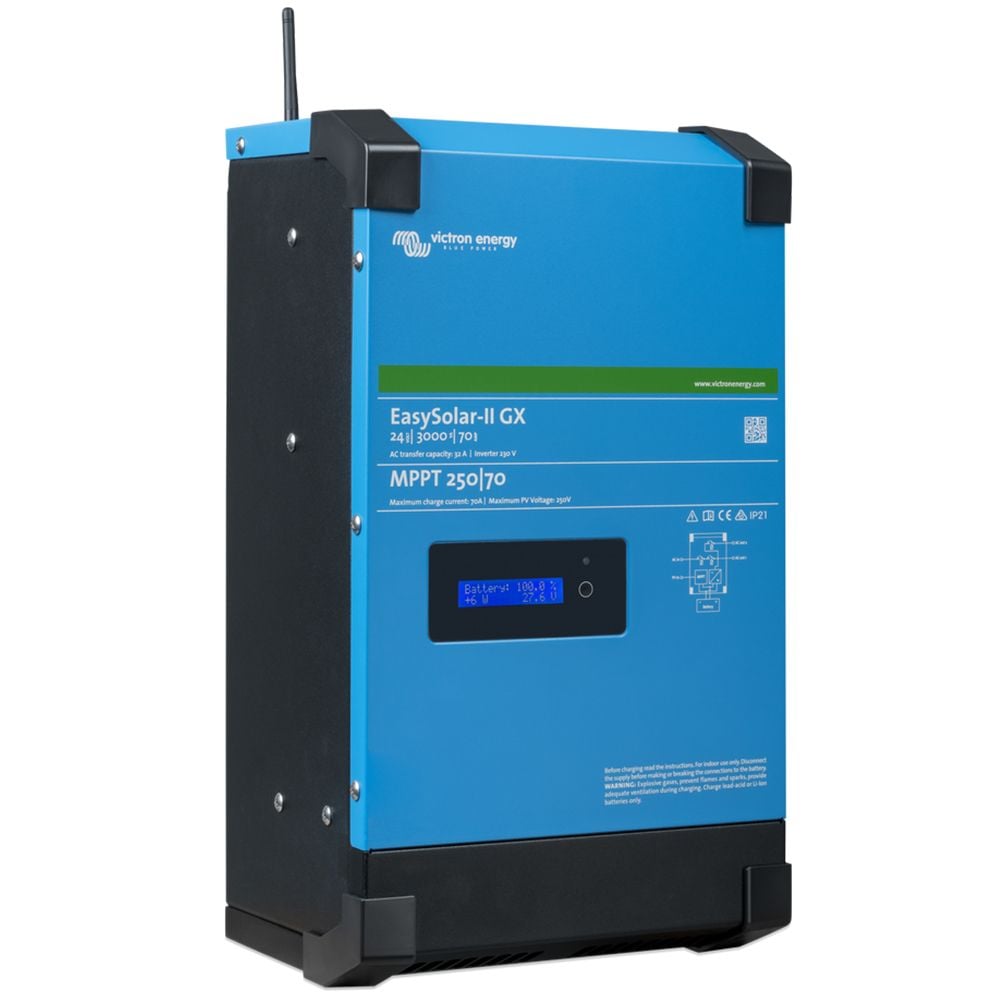

The device combination EasySolar-II GX from Victron Energy is an innovative solution that combines a powerful MultiPlus-II inverter/charger, a SmartSolar MPPT 250/70-Tr solar charge controller, and a GX device with a 2x 16 character LCD display in a compact housing. Everything is already pre-wired, which significantly simplifies installation and saves time.
Key Features
- Automatic Uninterrupted Switching
- Two AC Outputs
- Three-Phase Operation
- PowerControl and PowerAssist Functions
- Programmable Relay
- Remote Control via Wi-Fi
- LCD Display for Easy Monitoring
- BMS-Can Connections for Battery Management
- Ethernet and Wi-Fi for Easy Networking
How It Works
The EasySolar-II GX uses surplus photovoltaic energy to charge the batteries or feed into the grid. In the event of a power outage, it disconnects the grid connection and continues to supply power to the connected consumers. Loads that should be switched off when there is no AC input can be controlled via a second output. The PowerControl and PowerAssist functions monitor the power supply.
Three-Phase Operation
The device can be connected with other products to configure a three-phase output. Up to 6 units can be connected in parallel to provide an inverter power of up to 45kW/54kVA and a charging capacity of over 600A.
PowerControl and PowerAssist
With the PowerControl function, the maximum power consumption can be set to ensure that other devices are not overloaded. The PowerAssist function supplements the power of a generator or shore power source by providing battery power when the AC input power is insufficient.
Display and WiFi
The integrated display shows important information about the battery, inverter, and solar charge controller. Via Wi-Fi, this information can also be accessed on smartphones or other devices, and the system can be configured. The free Victron Energy VRM platform enables comprehensive remote monitoring and system adjustment.
Technical Specifications
General
- Interfaces: BMS-Can, USB, Ethernet, VE:Direct, WiFi
- Operating Temperature Range: -20°C - +45°C
- Protection Class: IP21
- Weight: 26 kg
- Dimensions: 499 x 268 x 237 mm
Inverter
- Input Voltage Range: 19-33 V
- Nominal DC Current: 150 A
- Nominal Battery Voltage: 24 V
- Output Voltage: 230V AC
- Frequency: 50 Hz
- Cont. Output Power (at 25°C): 3000 VA / 2400 W
- Cont. Output Power (at 40°C/55°C): 2200 W / 1700 W
- Max. Feed-in Power: 3000 VA / 2470 W
- Rated Current: 11 A
- Peak Power: 5500 W
- Max. Efficiency: 94%
Charger
- Input Voltage Range: 187-265V AC
- Input Frequency: 45-55 Hz
- Charge Voltage (Constant Voltage): 28.8 V
- Charge Voltage (Float Charge): 27.6 V
- Storage Mode: 26.4 V
- Max. Battery Charge Current: 70 A
SmartSolar Charge Controller MPPT 250/70-Tr
- Max. Output Current: 70 A
- Max. PV Power: 2000 W
- Max. PV Open Circuit Voltage: 250 V
- Max. PV Short Circuit Voltage: 35 A
- Max. Efficiency: 99%
- Self-Consumption: 20 mA
- Constant Charge Voltage: 57.6 V
- Float Charge Voltage: 55.2 V
Scope of Delivery
- 1x Victron Energy EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX
- 1x User Manual
