Victron MultiPlus 24/3000/70-16 24V 230V 2400W 6000W Inverter 70A Charger

Victron Multiplus 24/3000/70 - The Perfect Device Combination for Your Energy Needs

The Multiplus 24/3000/70 from Victron is an extremely versatile and powerful solution that functions as both a 24V 2400W pure sine wave inverter and a battery charger. Ideal for motorhomes, boats, and yachts, this Multiplus ensures a reliable power supply, even during grid fluctuations or power outages.

Main Features

• 2400W Continuous Power and 6000W Peak Power for 24V Battery Voltage
• Integrated 70A Battery Charger for Fast Charging of Large Batteries
• Pure 230V Sine Wave Voltage, Perfect for Sensitive Electronic Devices
• Lightning-Fast 16A Transfer Switch for Seamless Energy Transfer

Extensive Networking Options

The Multiplus offers numerous interfaces, including the VE.Bus Port and a COM Port, which enable easy system integration and configuration. This means that you can connect and control multiple devices to optimize your energy supply.

Flexible Applications

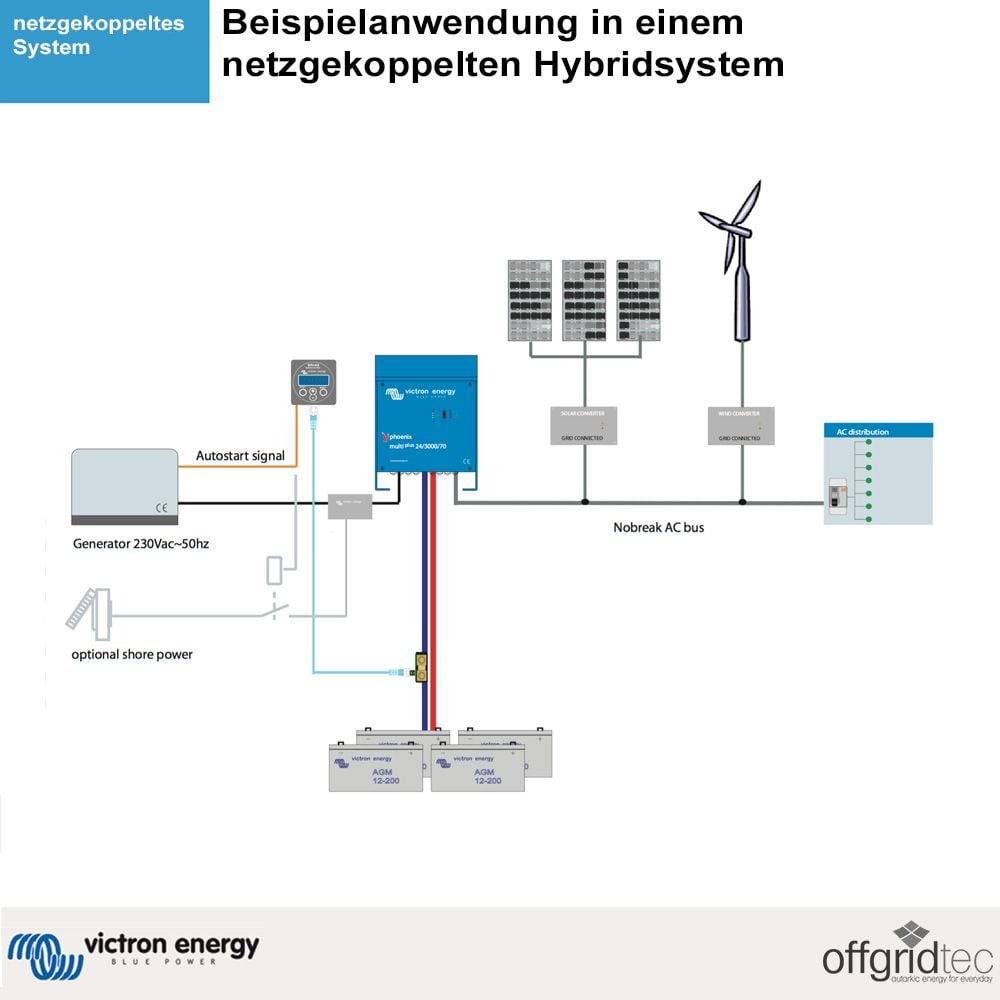

The Multiplus can be used in a variety of applications, including grid-tied self-consumption systems. It can draw power from the grid operator only when the battery capacity is insufficient, thus offering efficient energy utilization.

PowerControl and PowerAssist Functions

The PowerControl function allows working with limited generator power or restricted shore power, while the PowerAssist function ensures that batteries are used for support during peak loads. This protects your energy sources from overload.

Easy to Operate and Configure

Simple system configuration is done via DIP switches or using the VE.Bus Quick Configure software for more complex systems. In addition, various monitoring options provide easy control over the status of your energy supply.

Scope of Delivery

• 1x Victron Multiplus 24/3000/70-16 Device Combination (24V 2400W Pure Sine Wave Inverter + 24V 70A Battery Charger + 16A Transfer Switch)
• 1x User Manual
