Victron Quattro 12/5000/220 12V 230V 4000W Sine Wave Inverter 220A Battery Charger

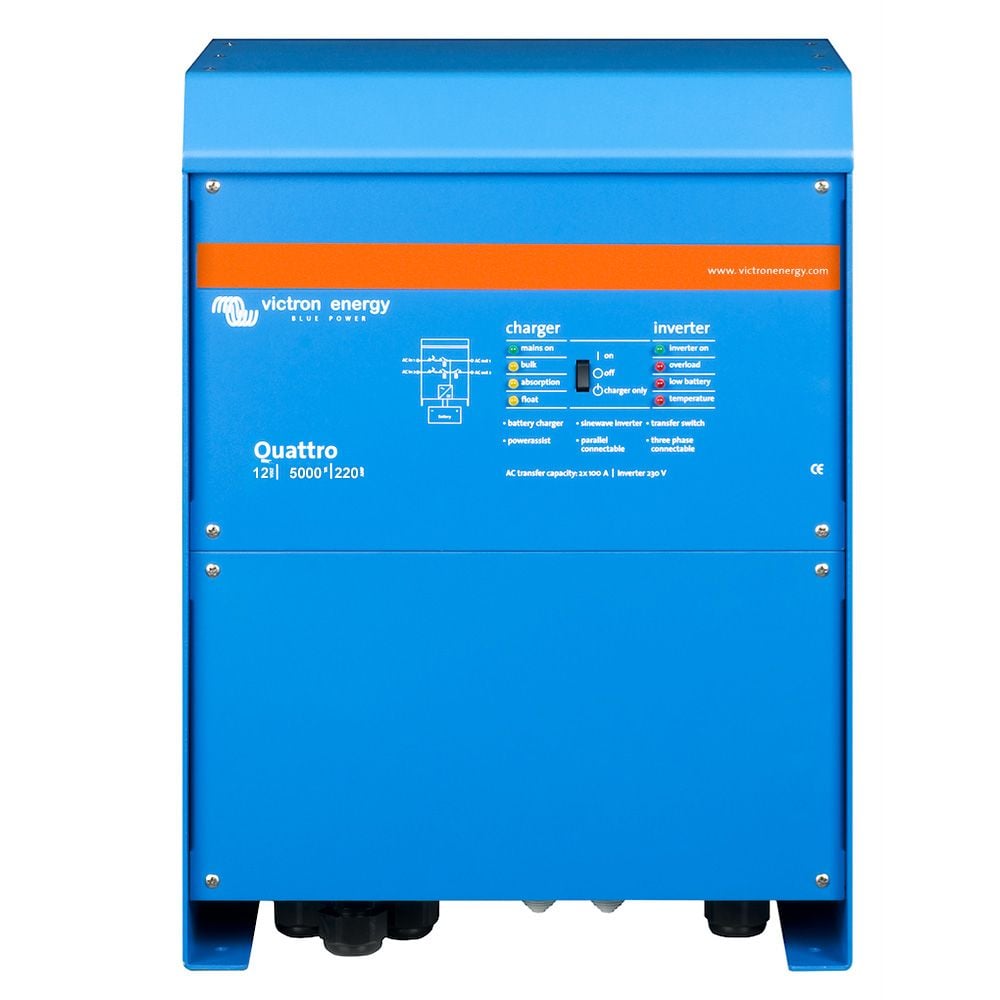

Victron Quattro 12/5000/220-100/100
The Victron Quattro 12/5000/220-100/100 device combination integrates a powerful 12V 4000W sine wave inverter, a robust battery charger, and a transfer switch in a compact unit. Ideal for grid and generator applications, this system ensures an uninterrupted power supply and maximum flexibility.
Main Features
- 4000W continuous power and 8000W peak power for 12V battery voltage
- True 230V sine wave voltage for clean and stable power supply
- Integrated 220A battery charger for fast charging of large batteries
- 2 AC inputs each with a 100A transfer switch
- 2 switchable AC outputs + 1 additional output for special applications
Technical Specifications
- Battery voltage: 12V
- Maximum power: 4000W (continuous), 8000W (peak)
- Integrated battery charger: 220A
- AC outputs: 2
- Additional outputs: 1 (active with AC input)
- VE.Bus communication port for extensive networking options
- PowerControl and PowerAssist functions for optimal power usage
- Compatible with many Victron control and display panels
- High efficiency and low self-consumption
- Up to 6 Quattros can be connected in parallel
Flexibility and Reliability
With two AC inputs and outputs, the Quattro offers an extremely flexible solution. The main output ensures uninterrupted operation, while the second output only provides power when AC input is active. This allows sensitive devices like computers to continue operating during a power outage.
Easy Configuration and Monitoring
The system configuration is quick and easy via DIP switches or the VE.Bus software. Additionally, there are numerous options for monitoring and control, including smartphone apps and remote access via Ethernet.
Scope of Delivery
- 1x Victron QUA125020000 Quattro 12/5000/220-100/100 device combination
- 1x user manual
