Victron Energy

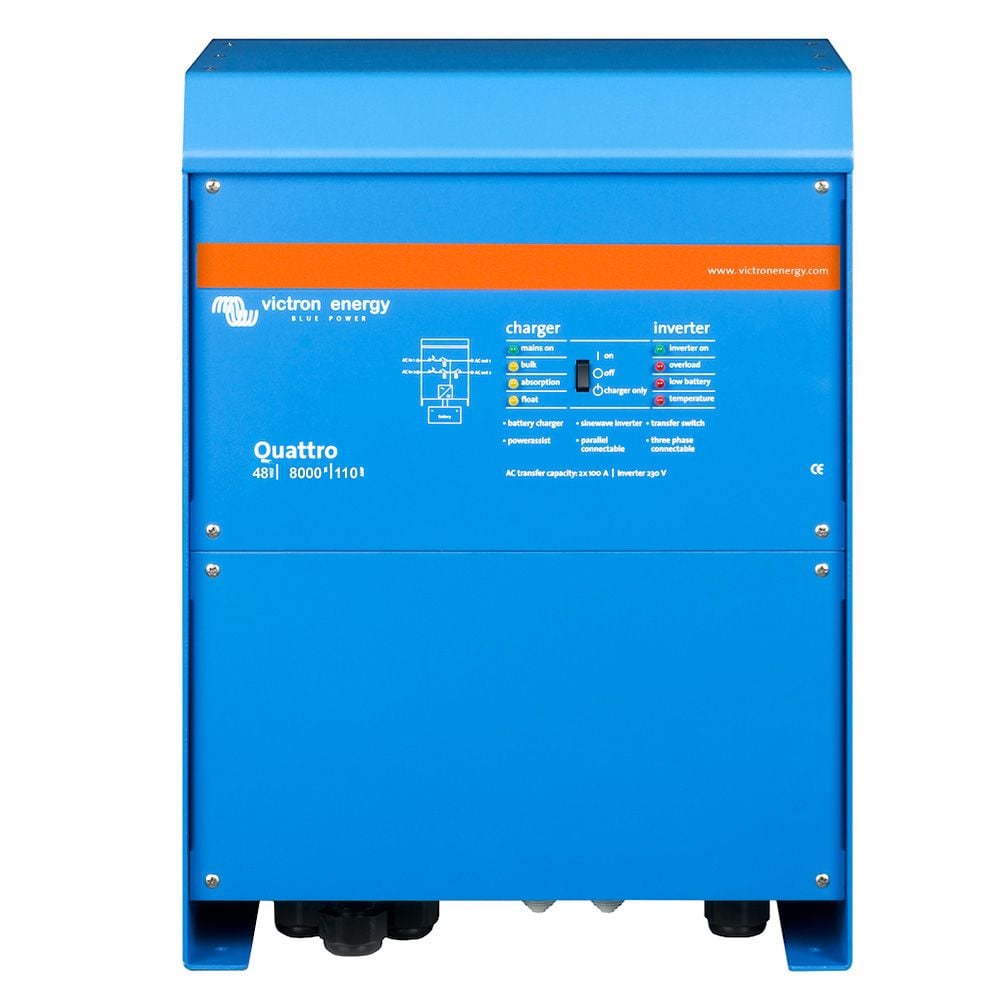

Victron Quattro 48/8000/110 48V 230V 6500W sine inverter 110A battery charger
€3.784,48
/
Victron Quattro 48/8000/110-100/100
The Quattro 48/8000/110-100/100 from Victron is the perfect solution for anyone needing a powerful and flexible power supply. This device combination includes a 48V 6500W sine inverter, a powerful battery charger, and a transfer switch in one compact unit. Ideal for use in grid-tied or off-grid applications.
Key Features
- 6500W continuous power and 16000W peak power for 48V battery voltage.
- Integrated 110A battery charger for fast charging of large batteries.
- Pure 230V sine voltage, ideal for sensitive electronic devices.
- 2 AC inputs and 2 AC outputs with 100A transfer switches.
- Automatic switching between two power sources.
Technical Specifications
Show Details
- VE.Bus communication port for extensive networking options.
- Uninterrupted operation during power failure in less than 20 milliseconds.
- PowerControl function for working with limited generator capacity.
- PowerAssist function to support short-term load spikes.
- Compatible with numerous Victron control and display panels.
- High efficiency and low self-consumption.
- Up to 6 units can be connected in parallel for increased system performance.
Easy System Configuration
The configuration of the Quattro is simple and user-friendly. With a DIP switch setting procedure, changes can be made in just a few minutes. For more complex systems, the VE.Bus Quick Configure and VE.Bus System Configurator software are available.
Monitoring and Control Options
Multiple options are available to monitor and control the system, including:
- Battery monitor
- Multi Control Panel
- Bluetooth Smart with smartphone or tablet
- Remote maintenance via Victron Ethernet Remote and Victron Global Remote
Scope of Delivery
- 1x Victron QUA488020000 Quattro 48/8000/110-100/100 device combination
- 1x user manual
