Victron

Victron BlueSolar MPPT 150/70-tr 12V 24V 48V 70A

€398,32
Verfügbar: Delivery time unknown

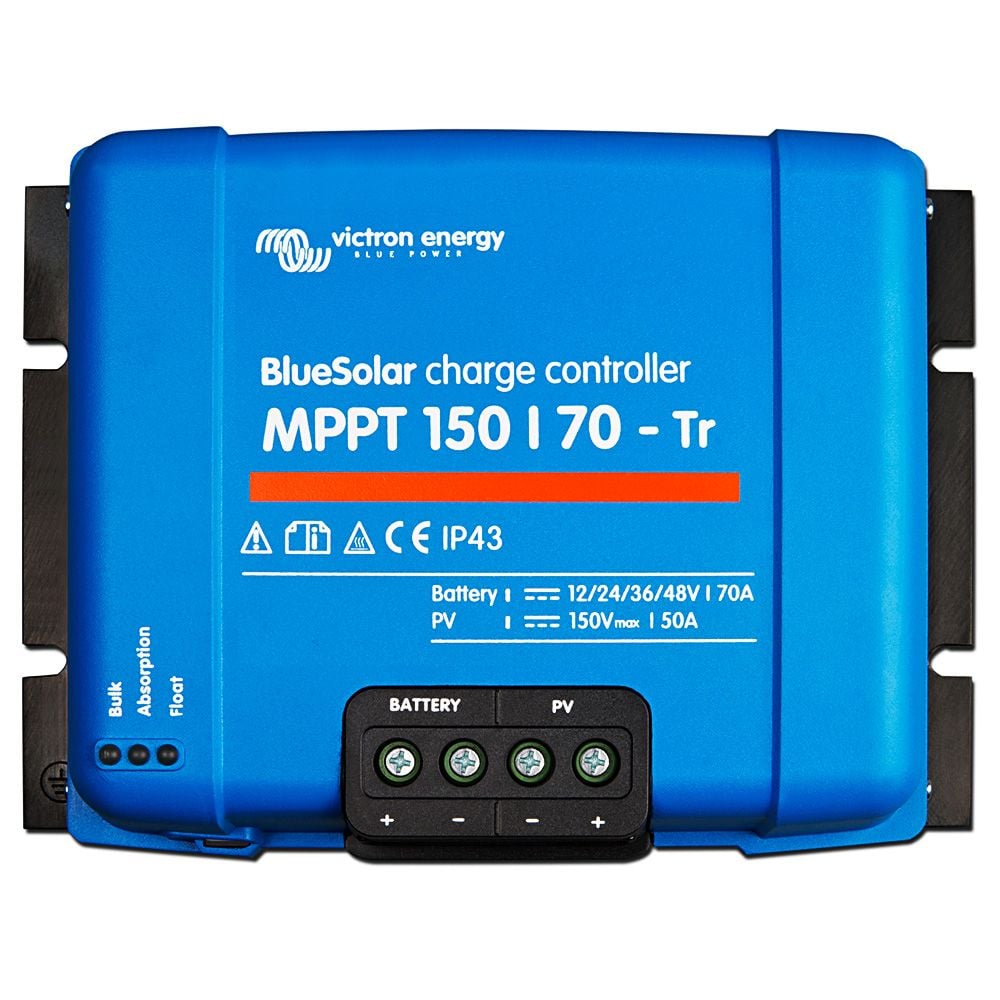

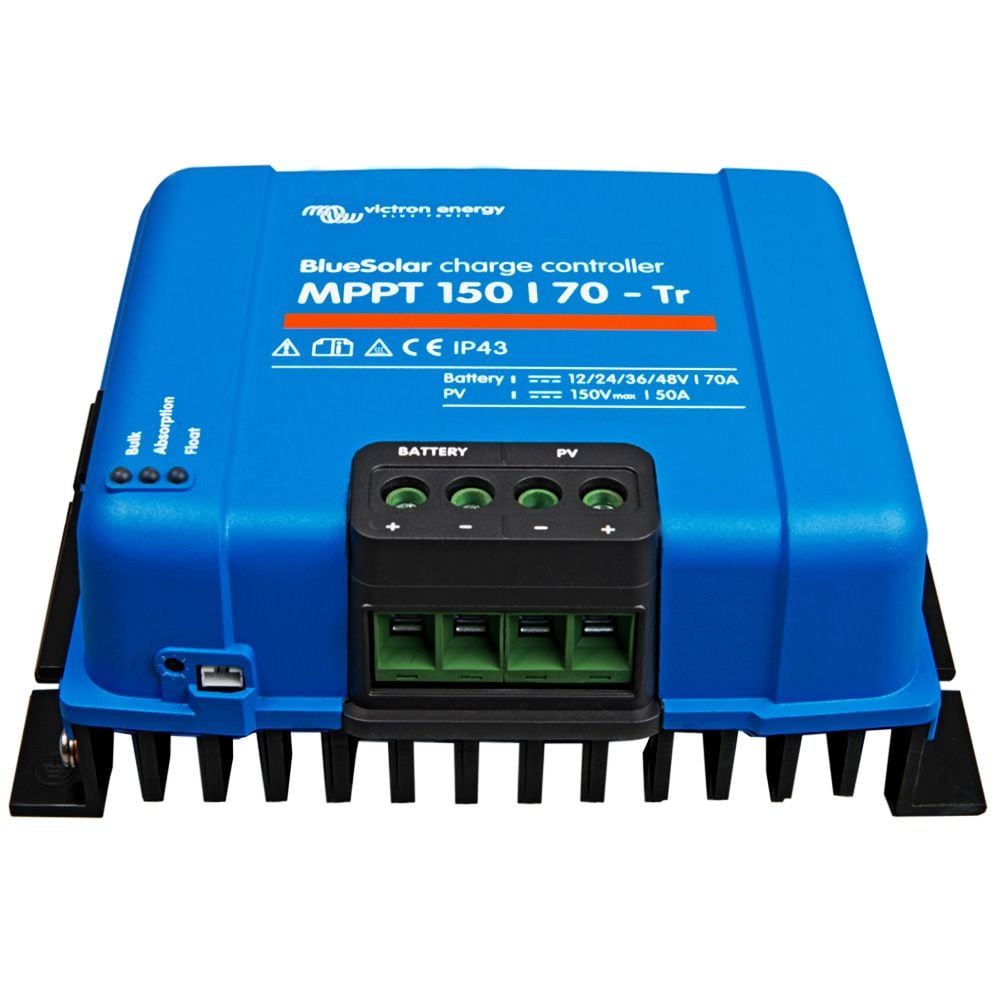

Victron BlueSolar MPPT 150/70tr

Discover the Victron BlueSolar MPPT 150/70tr, a state-of-the-art charge controller specifically developed for demanding applications. With ultra-fast power tracking and automatic MPP voltage adjustment in partial shading, this controller maximizes your energy yield, even under difficult conditions.

Key Product Features

  • Ultra-fast latest generation MPP tracker for maximum yields, even with cloudy skies.
  • Automatic detection of MPP voltage in partial shading improves performance compared to simpler MPPT charge controllers.

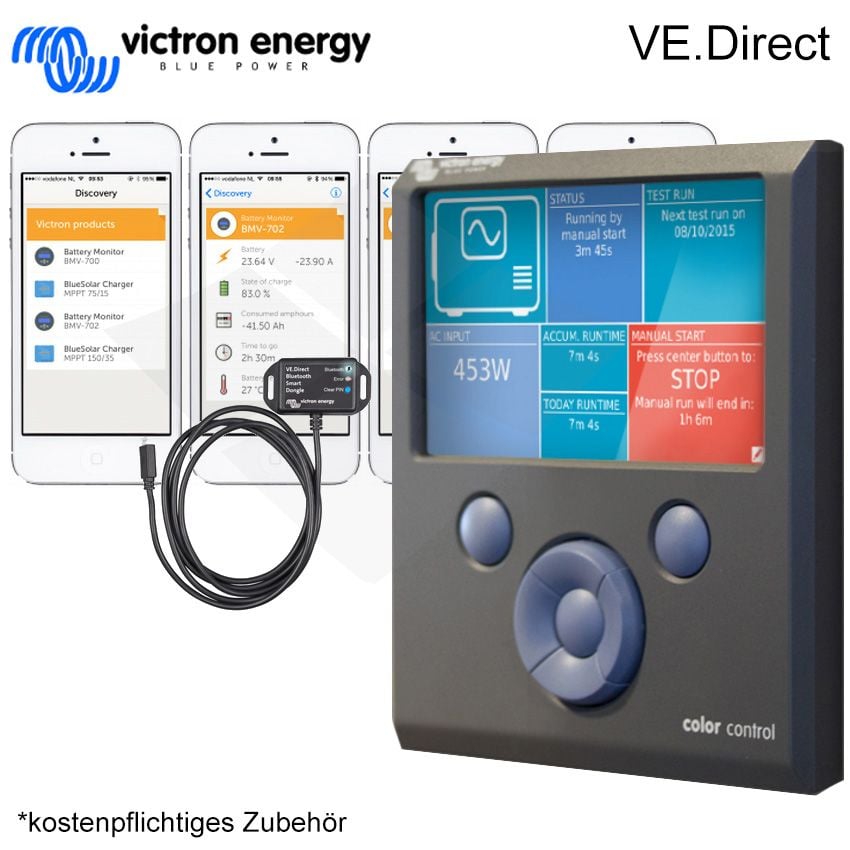

  • Integrated VE.Direct data communication port for communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel.
  • High maximum efficiency of 98% ensures efficient use of solar energy.
  • Parallel operation with other 150/60 controllers possible to expand your solar system.
  • Fully programmable charging algorithms that can be manually activated via a switch on the housing.
  • Suitable for all AGM, GEL, lead-acid calcium-calcium, and lithium batteries.
  • Integrated temperature sensor compensates the float and constant charge voltage according to temperature.

Technical Specifications

Show Details
  • Nominal Charge Current: 70A
  • Maximum PV Open Circuit Voltage: 150V
  • Maximum PV Current: 50A
  • Maximum PV Power:
    • 12V = 1000W
    • 24V = 2000W
    • 48V = 4000W
  • Protection Class: IP 43 for electronic components, IP 22 for connection area
  • Extensive Electronic Protection:
    • Protection against reverse polarity battery connection
    • PV reverse current blocking
    • Overheating protection
    • Short circuit protection
    • Protection against reverse polarity PV connection

Scope of Delivery

  • 1x Victron SCC010070200 BlueSolar MPPT 150/70tr 12V 24V 36V 48V 70A Charge Controller
  • Operating Manual
