Offgridtec® 10W MONO 12V Solar Panel

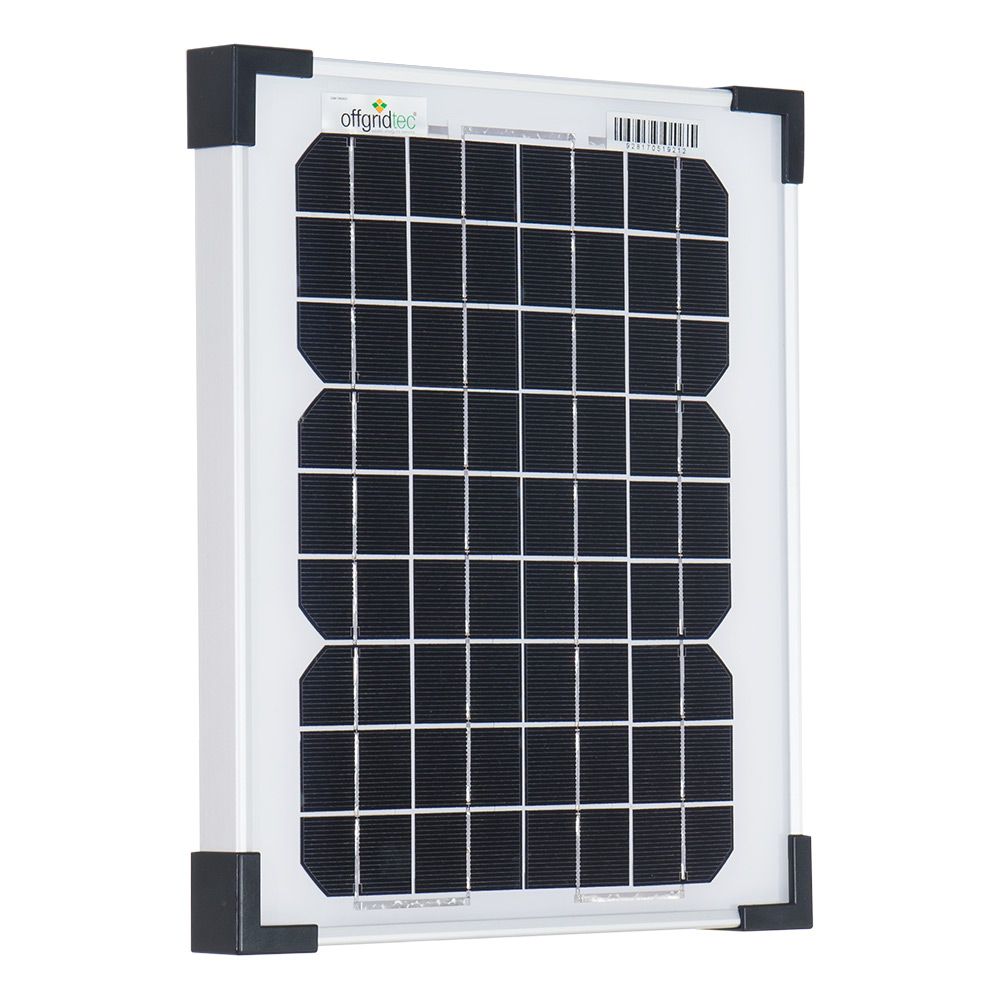

The 10W MONO Solar Module
The 10W MONO solar module is the perfect solution for your 12V systems. With an impressive efficiency of over 22% and an operating voltage of 20V, it ensures reliable energy generation, whether in fixed installations or mobile applications.
Product Features
- Power (Pmax): 10W
- High Operating Voltage: 20V, ideal for 12V systems
- Made from monocrystalline A-Grade solar cells
- Extremely durable ESG glass for use under extreme conditions
- Integrated Blocking Diode: Prevents current backflow when directly charging 12V batteries
- Bypass Diode: Minimizes power loss in case of shading
- 5 Years Warranty - Information on warranty conditions can be found here
Robust and Reliable
This module is not only immediately ready for operation, but also suitable for the harshest environments. Whether storm, extreme cold or heat – the 10W MONO solar module withstands all challenges and delivers significant yields even on cloudy days.

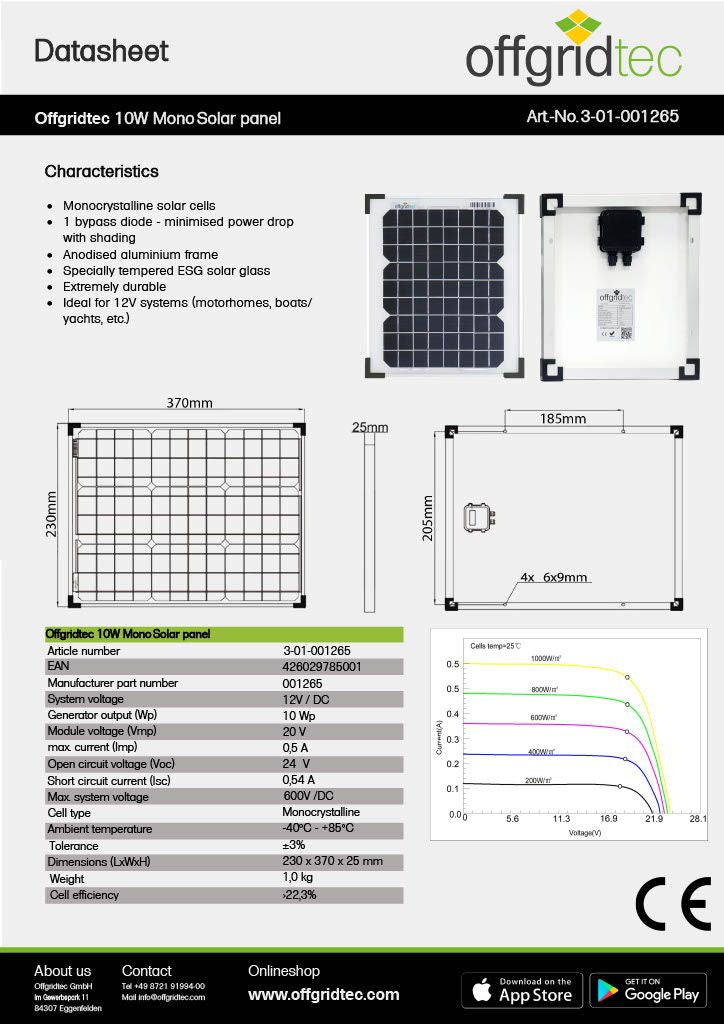

Technical Data
- Operating Voltage (Vmp): 20 V
- Open Circuit Voltage (Voc): 24 V
- Max. Current (Imp): 0.5 A
- Short Circuit Current (Isc): 0.54 A
- Max. System Voltage: 600 V
- Permissible Ambient Temperature: -40°C to +85°C

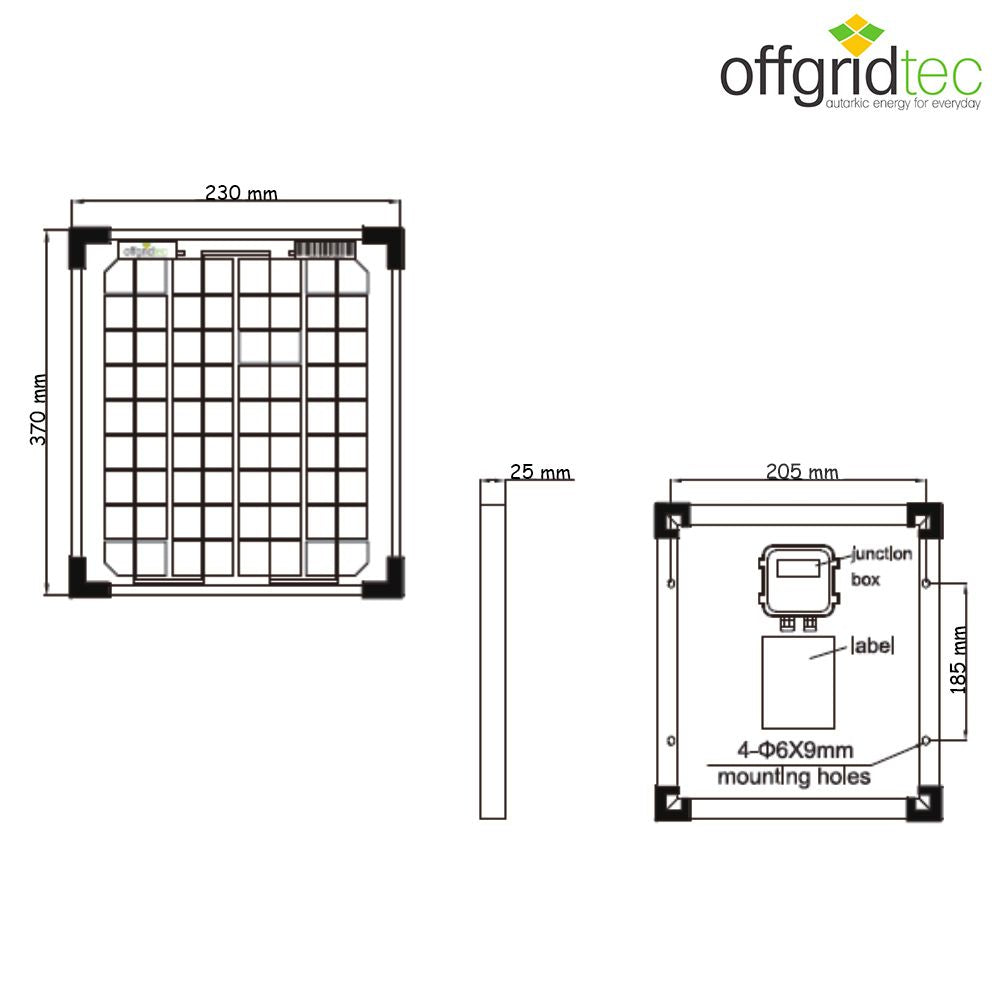

- Dimensions: 230 x 370 x 25 mm
- Weight: 1.0 kg
- Part Number: 3-01-001265
Diverse Applications
The 10W MONO solar module is versatile, ideal for 12V solar systems on garden sheds, in allotments or for powering lighting applications. It is also excellent for self-sufficient systems in signal and monitoring technology as well as in motorhomes.

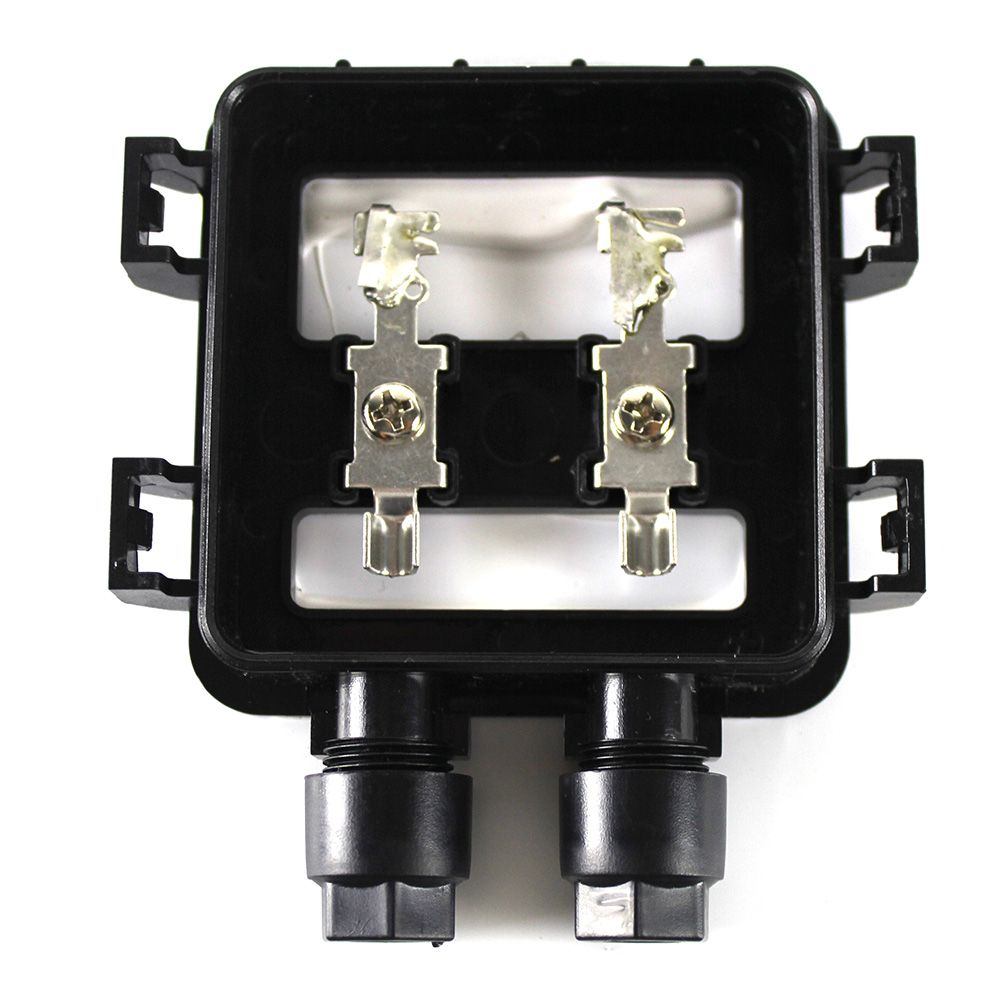

Please note that the module is supplied with a connection socket, but no cables are included.
Scope of Delivery
- 1x 10W MONO 12V Solar Module
