Offgridtec® basicPremium-XL 150W Solar System 12V/24V Complete System

basicPremium-XL 150W Solar System 12V/24V

The basicPremium-XL 150W Solar System offers you a reliable and effective solution for using solar energy. With a high-quality, monocrystalline 150 Wp solar module and a user-friendly PWM-12/24-30A charge controller with LCD display, this set is the ideal basis for various applications.

High-Quality Basic Set For Versatile Applications

This solar set consists of all necessary components to charge your battery with self-produced solar power. Whether on the garden shed, the garage or in the mobile sector, the basicPremium series guarantees high quality and reliability. The 150W solar module uses state-of-the-art manufacturing techniques and the connection cables are designed in such a way that the installation is simple and efficient.

Applications Of The Solar System

• 12V or 24V DC power supply in garden sheds and allotments
• Self-sufficient systems for outdoor lighting
• Monitoring and communication systems or weather stations
• Charging of smartphones, tablets or other devices with 12V / 5V DC power supply

Performance Parameters At A Glance

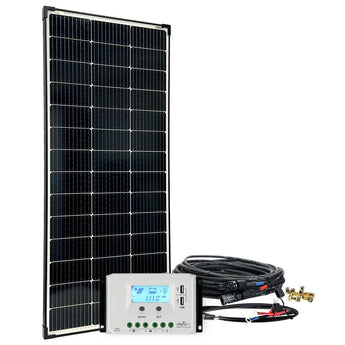

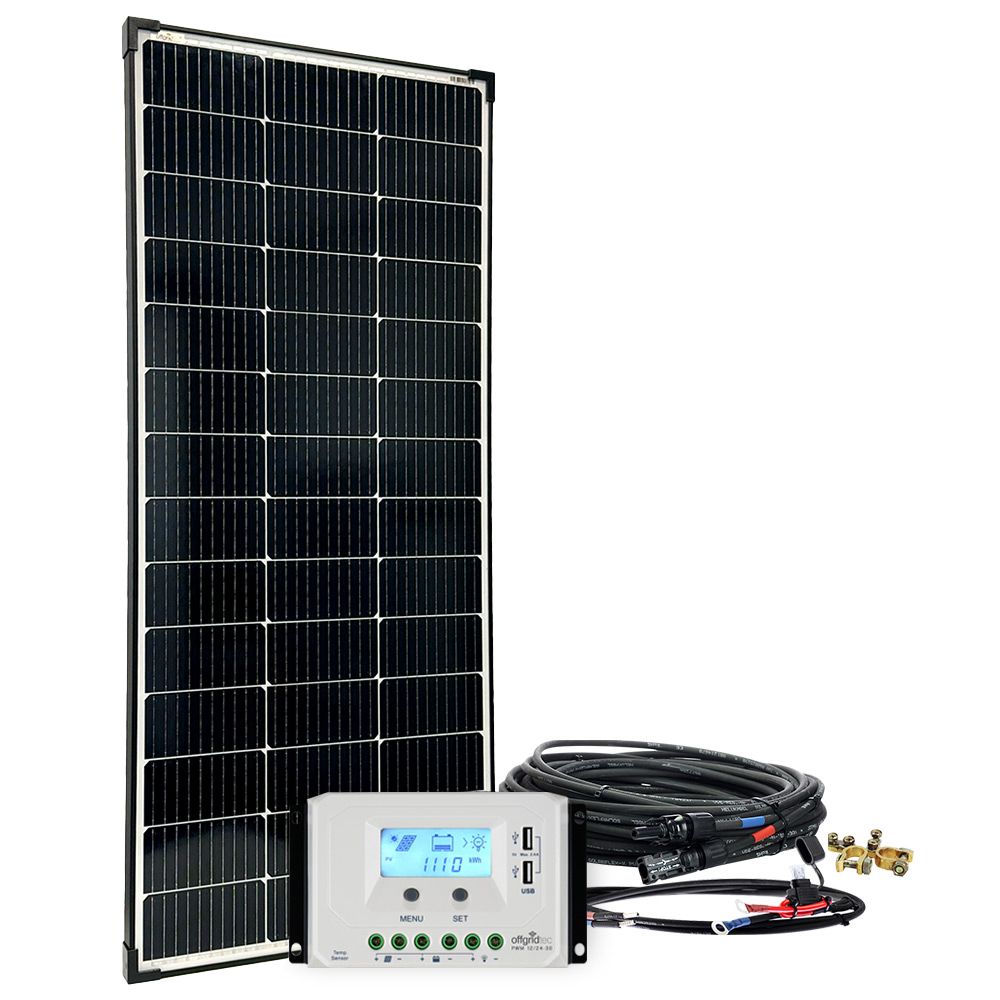

Components Of The basicPremium-XL 150W Solar System

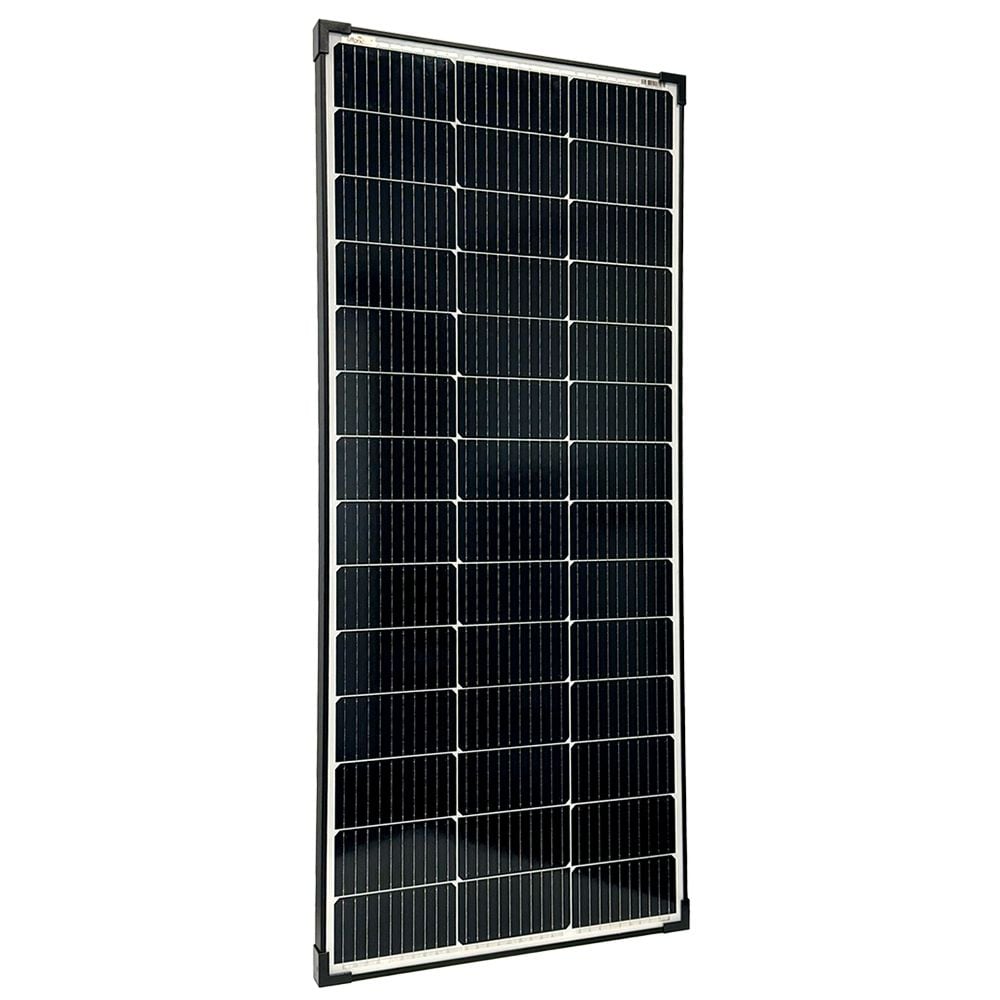

• 1 x 150W V2 Solar Module
  • Nominal power: 150 Wp, Part number: 3-01-018395
  • Operating voltage (Vmp): 23.9 V, Operating current (Imp): 6.28A
  • Highly efficient solar cells with minimal power loss in case of shading
  • Robust frame made of anodized aluminum and ESG solar glass
  • MC4 connectors, Dimensions: 1350 x 590 x 35 mm, Weight: 8.9 kg

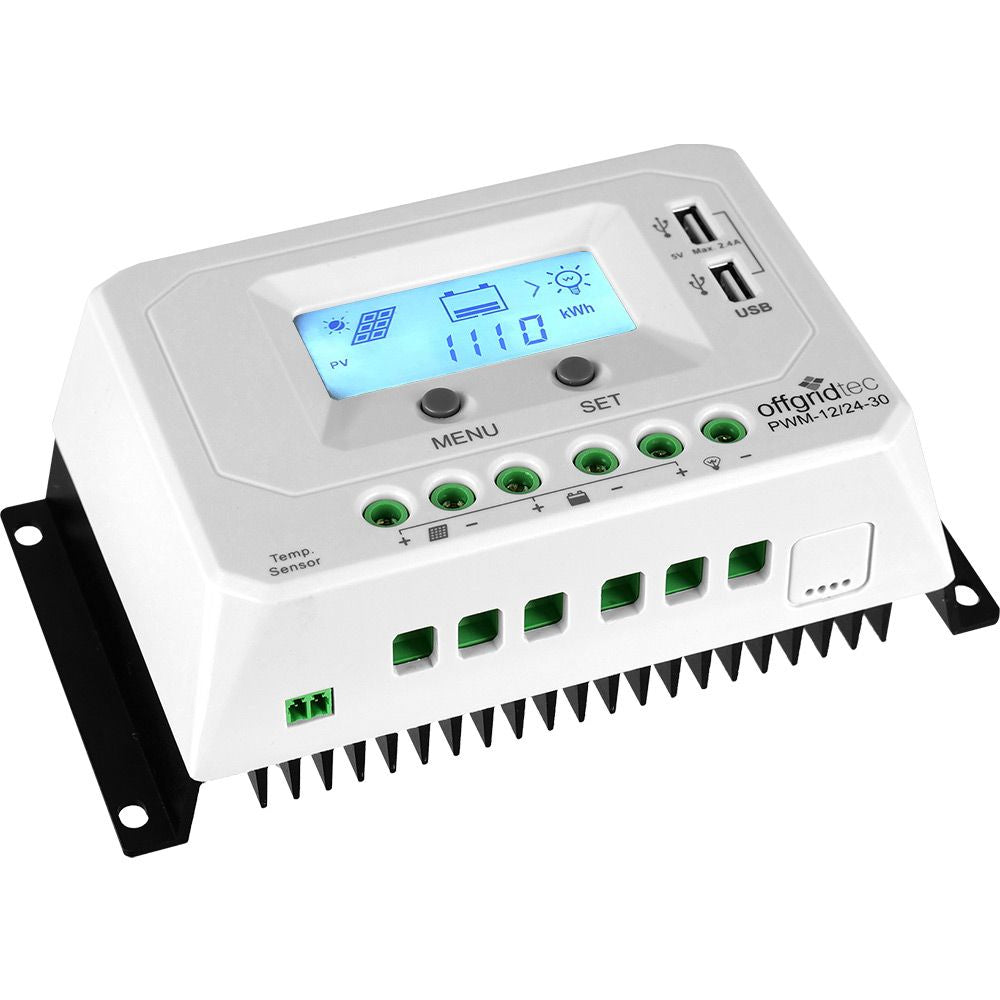

• 1 x PWM-12/24-30 Pro Solar Controller 12V/24V
  • Max. charging current: 30 A, max. PV power: 390 W / 780 W
  • 3-stage PWM charge regulation for efficient battery charging
  • 3 battery types adjustable: AGM, GEL, Liquid Lead Acid
  • LCD display with numerous display options
  • 2 USB Ports with maximum output power of 2.4A
  • Temperature-compensated battery charging (Sensor optional)

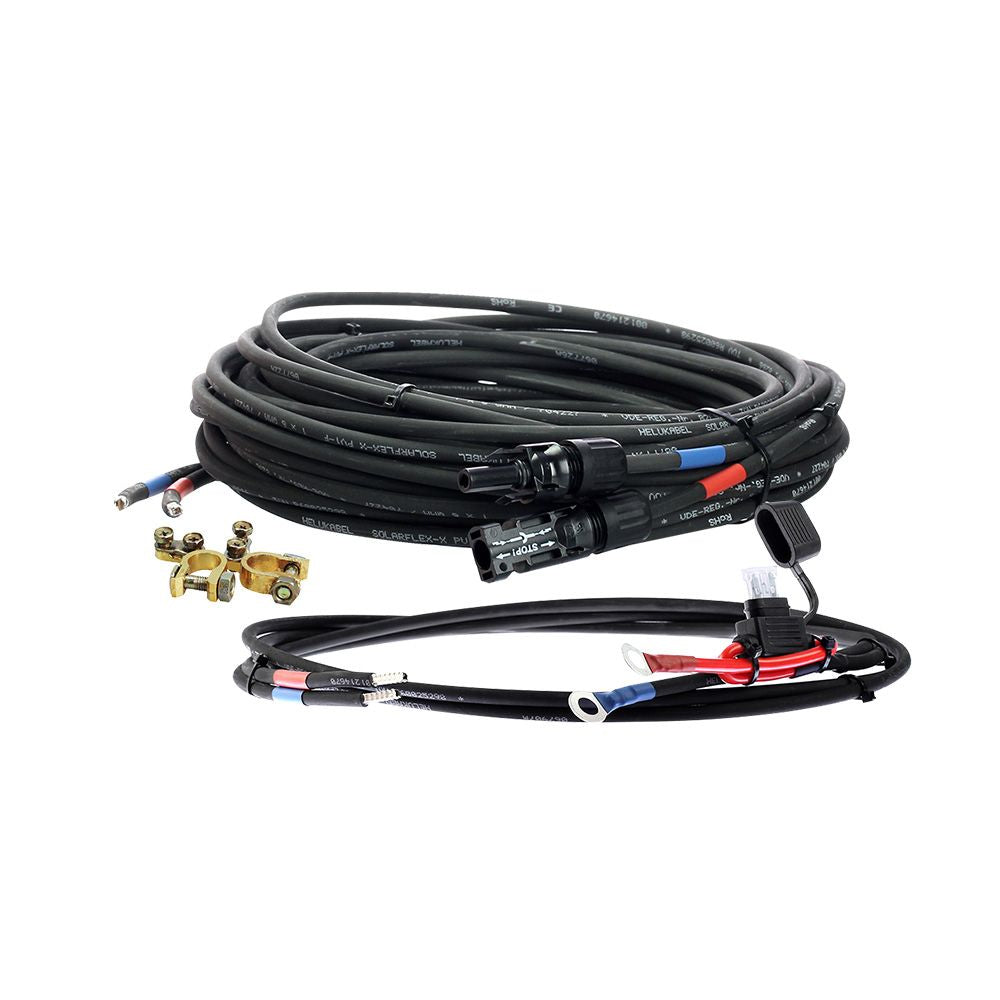

• 1 x 8m 2x6mm² Solar Connection Cable
  • Plug & Play - immediately ready for use
  • MC4 connectors on the solar module side
  • Wire cross-section: 2x6mm
