Offgridtec Balcony Power Plant: 860W Make Your Own Solar Power

Balcony Power Plant Complete Systems

The balcony power plant complete systems are an ideal way to produce a part of your required household electricity yourself and to significantly reduce your total expenses for electricity. Each system contains two powerful, bifacial solar modules with 430W each and the matching micro-inverter. Everything you need for connection to your in-house power grid is included in the scope of delivery. If required, the modules can also be mounted on the balcony railing or roof. Support is available to you for individual mounting options.

How Does A Balcony Power Plant Work?

The balcony power plant is a compact solar system, which consists of a solar module and a matching micro-inverter. The inverter is attached directly to the solar module and connected with a solar connector. Via the Betteri connection of the inverter, you connect the AC cable and lead it directly to the socket, be it a usual Schuko socket or a Wieland feed-in socket, which is included in the scope of delivery. To use the generated solar power in the house power grid, no special settings are necessary.

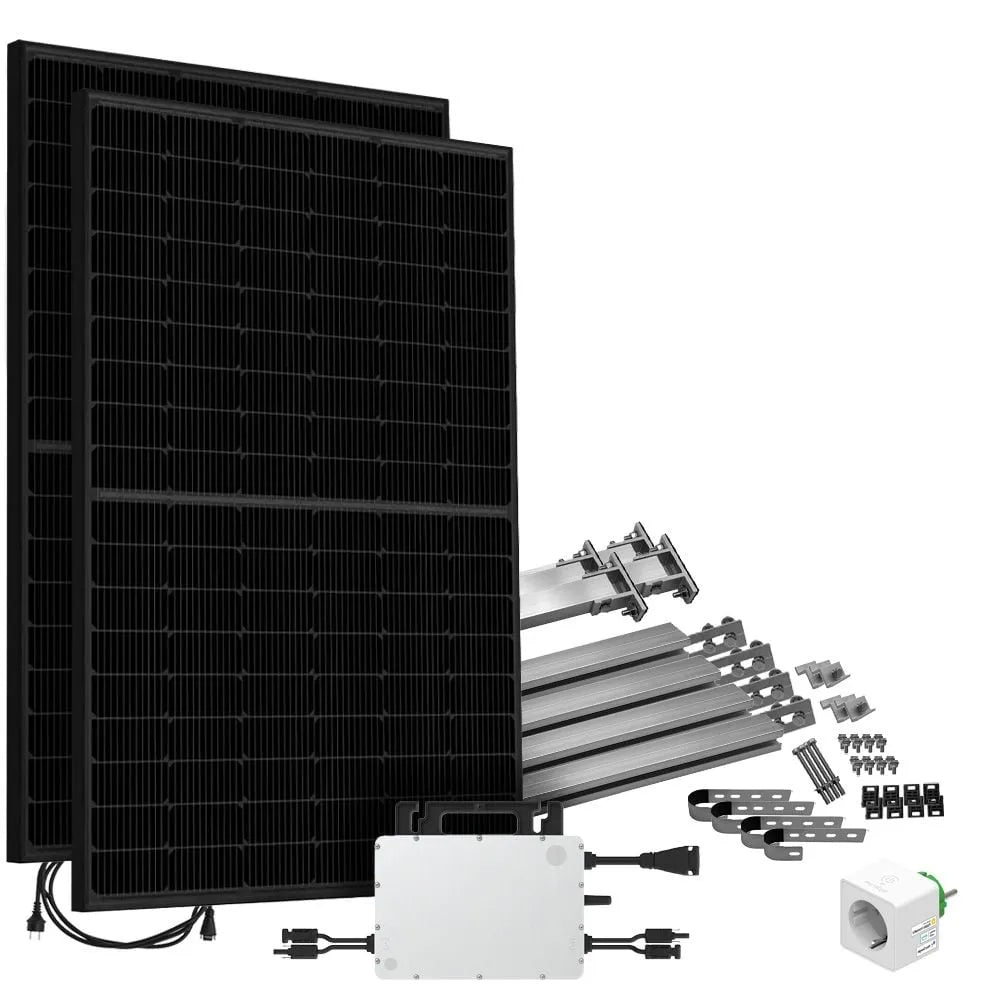

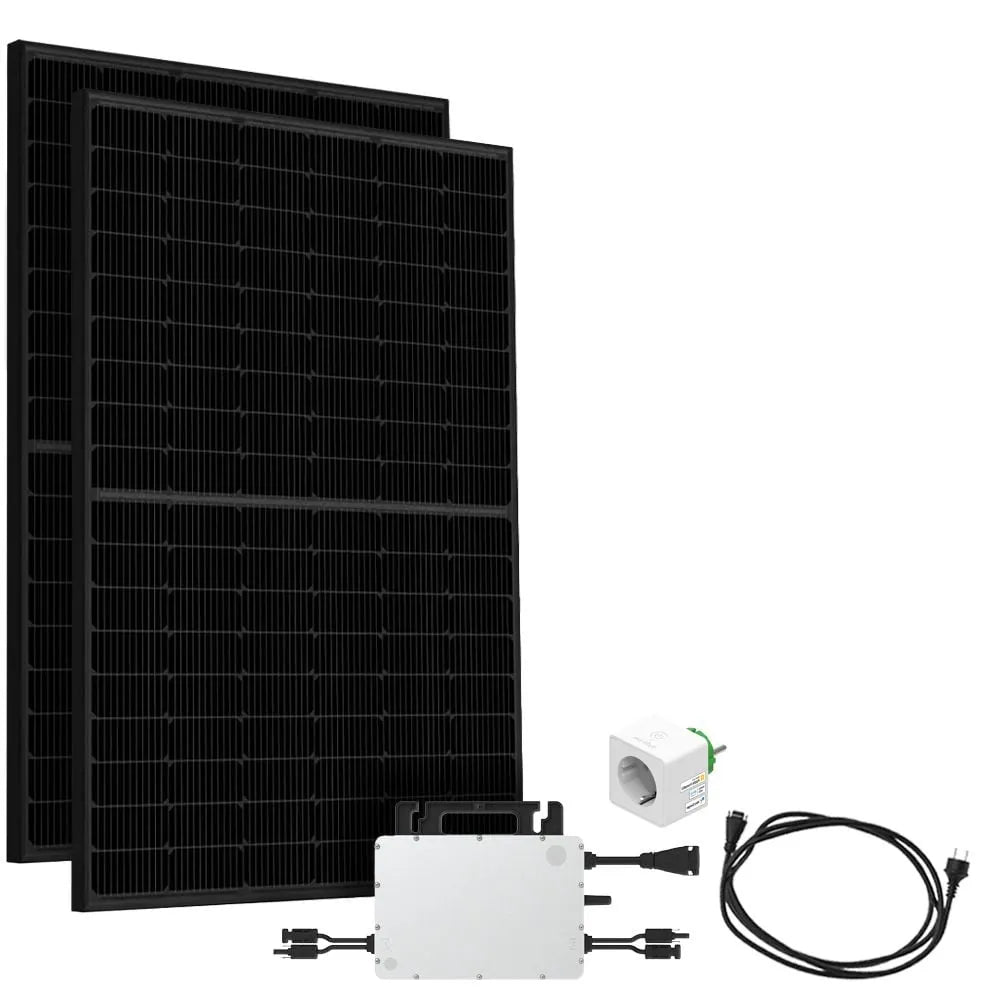

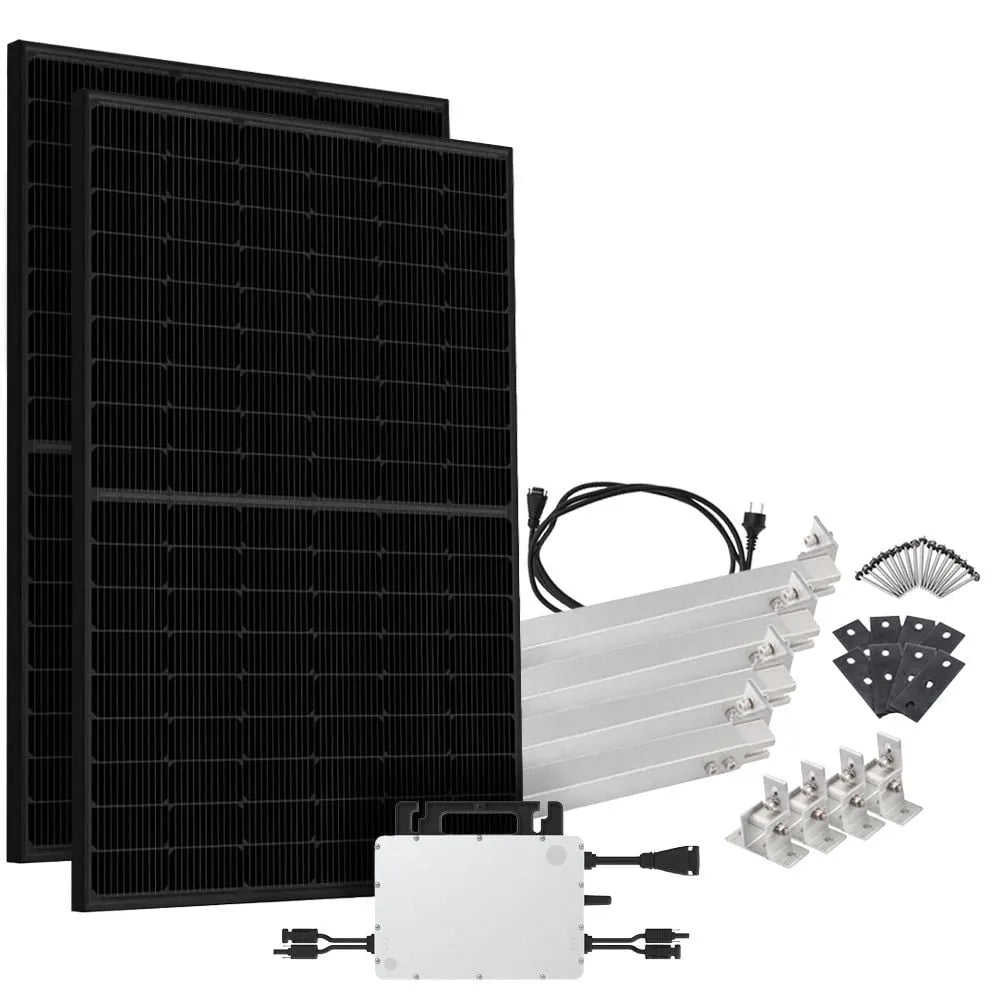

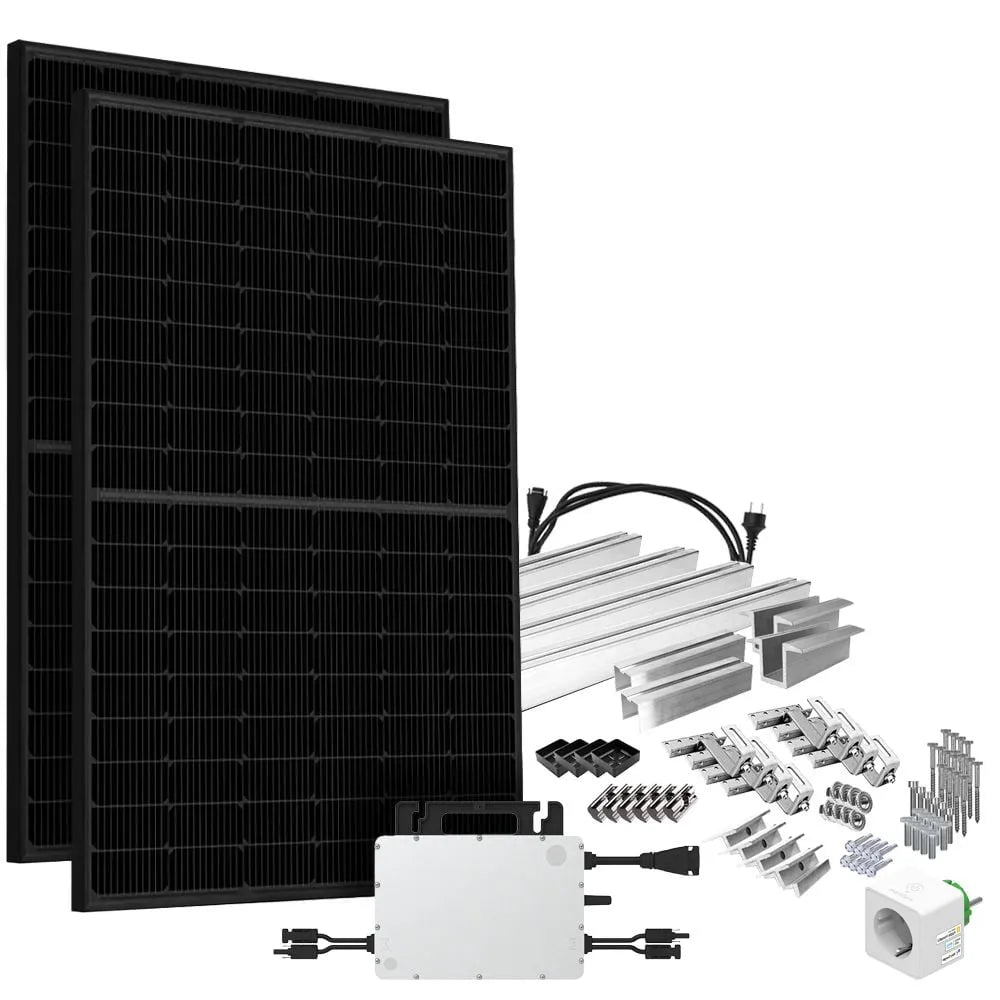

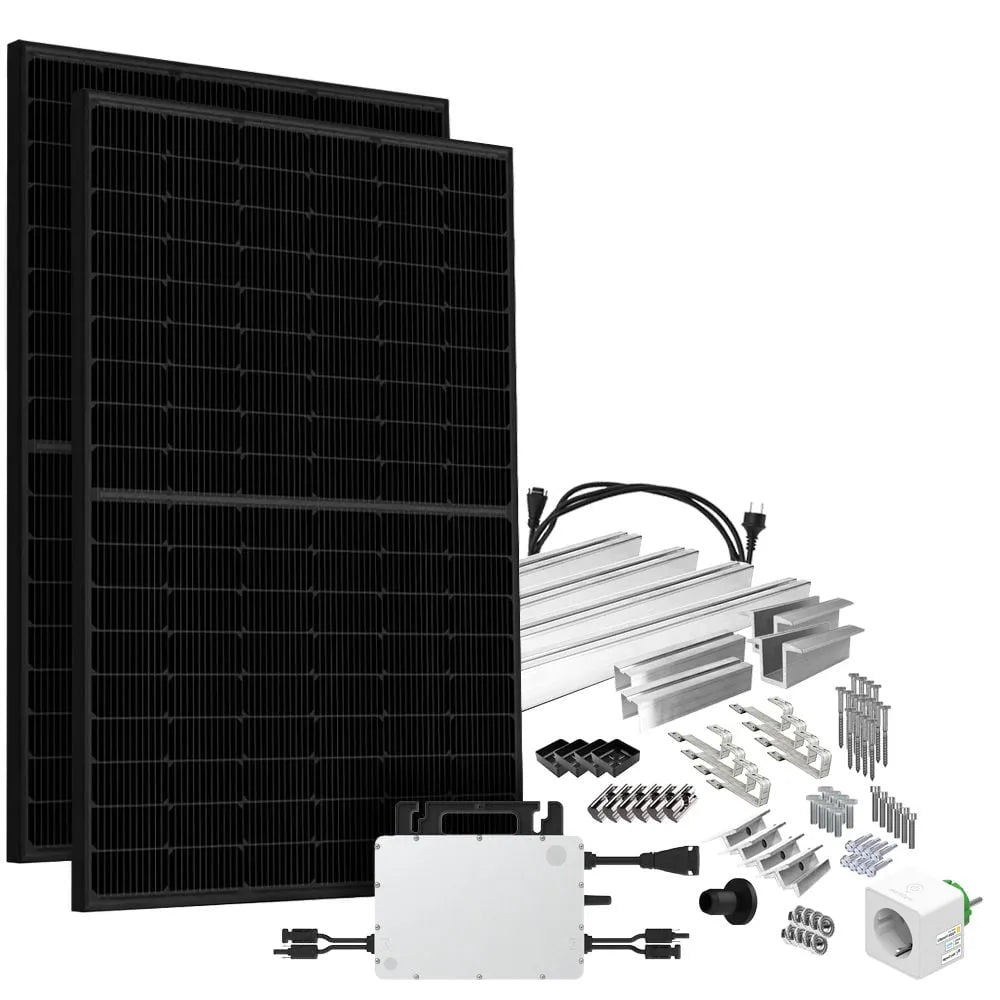

The Balcony Power Plant Complete System Contains:

2x Luxen Solar 430W TopCon Bifacial Solar Module Full Black
1x Hoymiles HMS-800W-2T Micro Inverter
1x Hoymiles HMS Connection Cable (length selectable: 5m, 10m, 15m)

Optional: Mounting package for various roofs and balcony railings, as well as the myStrom WiFi Switch EU.

Luxen 430W LUXPOWER SERIES 5 Solar Module

The monocrystalline and bifacial 430W Full Black solar module impresses with innovative technologies that offer excellent performance and low electricity generation costs. With a lifespan of 30 years, the manufacturer guarantees high quality.

Technical Data Of The Luxen 430W N5 Solar Module

Maximum Power: 430W
Module Voltage (Vmp): 32,04V
Max. Current (Imp): 13,42A
Open Circuit Voltage (Voc): 38,96V
Short Circuit Current (Isc): 14,13A
Module Efficiency: 22,02%
Dimensions: 1722 x 1134 x 30 mm
Operating Temperature Range: -40°C to +85°C
Cells: 108 (6x18)
Max. Operating Voltage: 1500V DC
Weight: 23,5kg

Hoymiles HMS-800W-2T Micro Inverter

The HMS-800W-2T Micro Inverter is lightweight and perfect for solar power production with up to two solar panels. With integrated WiFi and high efficiency, it ensures optimal energy yield.

Technical Data Of The Hoymiles HMS-800W-2T Micro Inverter

Recommended Module Power: 320W - 540W (per module)
MPPT Voltage Range: 16-60V
Startup Voltage: 22V
Maximum Input Voltage: 65V
Maximum Input Current: 2x14A
Rated Output Power: 800VA
Rated Output Current: 3,48A
Rated Output Voltage: 230V
CEC Peak Efficiency: 96,7%
Weight: 3,2kg
Enclosure Rating: IP67
Number Of MPPTs: 2

myStrom WiFi Switch EU

The WiFi Switch EU allows you to control your electronic devices smarter. Measure your power consumption and control devices conveniently via the myStrom App. It is compatible with Amazon Echo, Google Assistant and other platforms.

Technical Data Of The myStrom WiFi Switch EU

Max. Power Consumption: 16A
Operating Voltage: 120V
Material: Polyvinylchloride
Weight: 120g
Dimensions: 87 x 150 x 87 mm

Optional Mounting Systems

The balcony power plants are available with various mounting sets, including for balcony railings, flat roofs, beaver tail roofs, tile roofs, and corrugated eternit as well as sheet metal roofs.

Balcony Power Plants In Germany

In Germany, there are currently no special laws for solar power generation for self-consumption. The installation of a balcony power plant via a Schuko socket is generally permitted, but a notification must be made to the Federal Network Agency.

For further questions about balcony power plants and their functionality, we are happy to assist you.
