Offgridtec

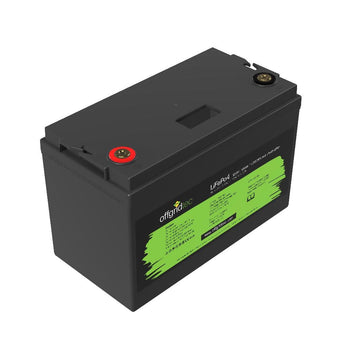

Offgridtec LifePo4 Battery 12/100 12.8V 100Ah with BMS and Heating Mat 1280Wh

€327,54
Verfügbar: Shipping in 2-5 Business Days

LiFePO4 Battery 12/100 With Heating Mat

The LiFePO4 battery 12/100 with heating mat represents a state-of-the-art and efficient energy storage solution. With a capacity of 100Ah and a nominal voltage of 12.8V, it ensures both safety and outstanding performance. Thanks to its compact and maintenance-free design, the battery can be easily installed and integrates flexibly into individual energy storage systems.

Protection And Safety

Equipped with an integrated Battery Management System (BMS), the battery protects against overcharging, deep discharge, short circuits, and overheating. This not only leads to an extension of the runtime, but also increases safety during operation. The powerful battery impresses with a lifespan of up to 5000 charging cycles, so you can benefit from a reliable energy supply for a long time.

Integrated Heating Mat

The battery also scores with an integrated heating mat, which ensures that it operates optimally even at low temperatures. This heating mat prevents the freezing of the cells and guarantees reliable power delivery even under extreme climatic conditions. This maximizes the efficiency and lifespan of the battery.

Technical Advantages At A Glance

  • Integrated BMS with numerous protective devices
  • Integrated heating mat
  • Lifespan of up to 5000 cycles
  • UPS, emergency power supply
  • Higher performance and superior safety
  • Increased flexibility with up to 4 batteries in parallel connection
  • Low self-discharge
  • Fast charging with 98% high power density

Advantages Of The Integrated Heating Mat

  • Protection against damage during charging: LiFePO₄ cells must not be charged below 0 °C, otherwise lithium plating occurs. This can drastically shorten the lifespan.
  • Preservation of charging capability: The heating mat warms the cells to a safe temperature, so that charging is possible even at cold temperatures.
  • Optimization of performance: A heated battery can deliver more energy and operate more efficiently, even in the cold.
  • Use in cold environments: Ideal for motorhomes, off-grid systems, or electric vehicles that are often exposed to sub-zero temperatures.

Integrated BMS

The integrated Battery Management System offers automatic protection against overcharging, deep discharge, and short circuits. The lithium iron phosphate chemistry eliminates the risk of explosions or fires and ensures optimal use of the battery.

Technical Data

Show Technical Specifications
  • Nominal voltage: 12.8V
  • Nominal capacity: 100Ah
  • Nominal energy: 1280Wh
  • Max. charging voltage: 14.6V
  • Charging current: 20A
  • Discharge voltage: 10V
  • Operating current: 100A
  • Max. pulse current: 200A
  • Operating temperature charging: 0°C - +55°C
  • Operating temperature discharging: -20°C - +65°C
  • Connection: M8
  • Protection class: IP65
  • Lifespan: 5000 cycles
  • Dimensions: 329 x 172 x 214 mm
  • Weight: 10.1 kg

Scope Of Delivery

1x LiFePO4 Battery 12/100 12.8V 100Ah BMS integrated 1280Wh with integrated heating mat
