Victron Cyrix-i 24/48V-400A intelligent battery combiner

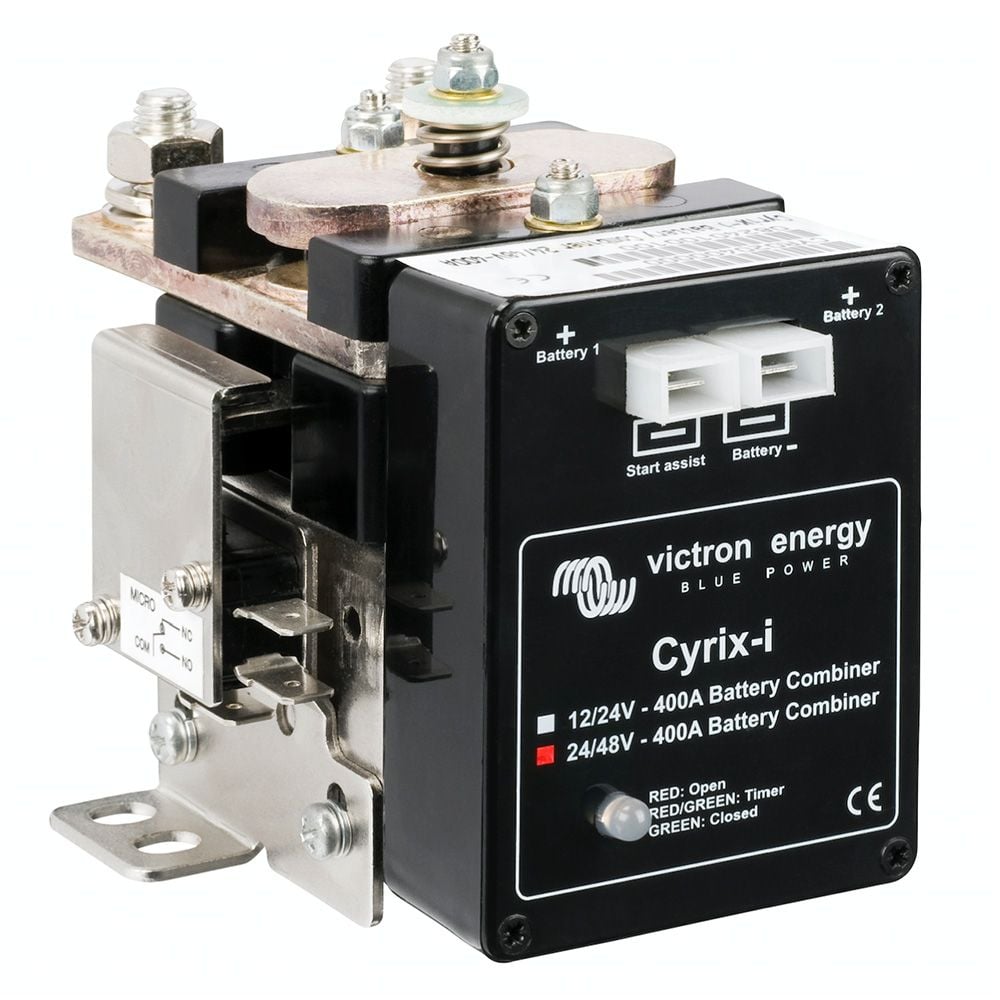

Victron Cyrix-i 24/48-400A Battery Coupler

The Victron Cyrix-i 24/48-400A is an advanced battery coupler that prevents unwanted switching operations during charge current distribution. With its intelligent technology, it ensures an efficient and secure connection between different battery banks.

Important Product Features

Intelligent Technology

The Cyrix-i automatically detects the applied system voltage, whereby a voltage loss is virtually eliminated. Unlike conventional isolation diodes, there is no need to increase the charging voltage at the alternator or charger to compensate for losses.

Priority Switching For The Starter Battery

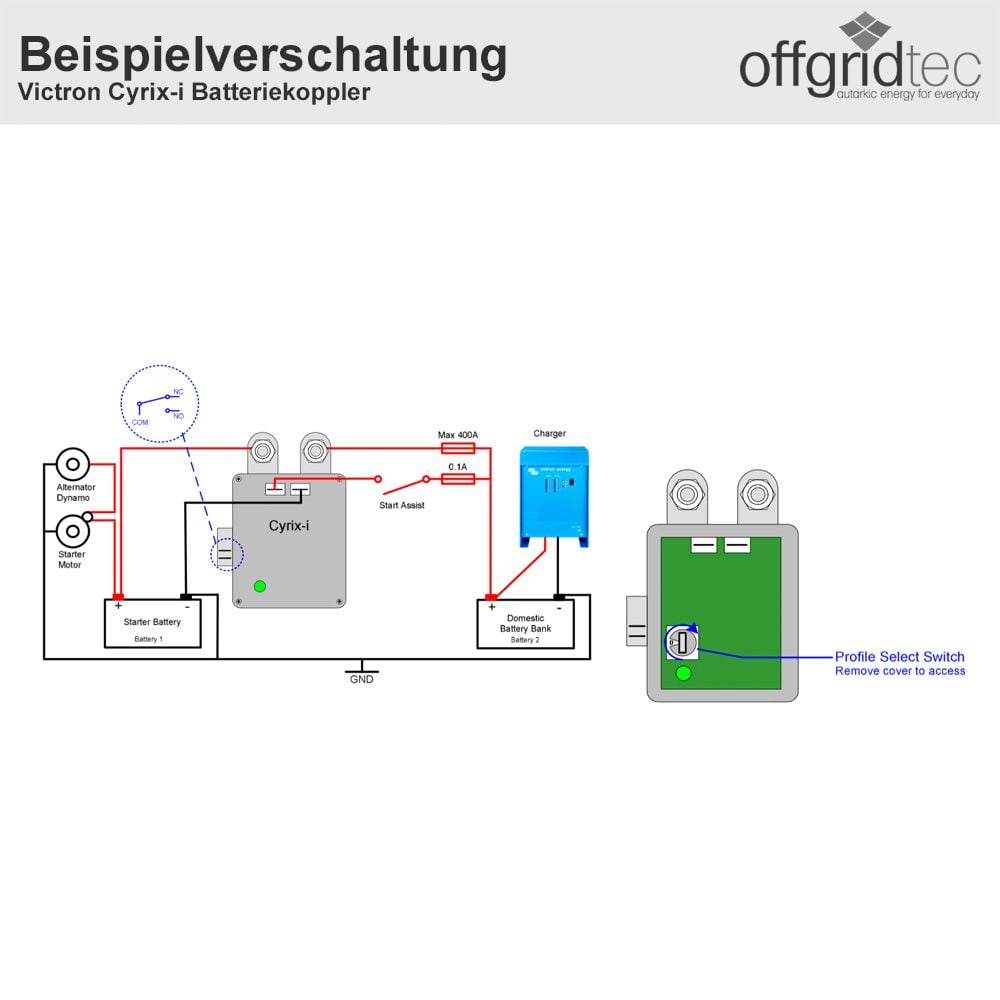

Typically, the alternator is directly connected to the starter battery. The Cyrix-i only connects the other batteries for parallel charging when the starter battery has reached the required voltage.

Bidirectional Voltage Measurement And Power Supply

The Cyrix-i continuously measures the voltage values of the connected batteries and operates reliably even if one of the batteries has an undervoltage. In addition, unwanted switching during installation is prevented by the Cyrix-i not switching if the voltage at one of the battery terminals falls below certain values.

Emergency Functions

In an emergency, the Cyrix-i can be switched on via a push-button switch, remaining active for 30 seconds. In addition, there is a manual switch for parallel connection of the batteries, which is particularly helpful if the starter battery is empty or damaged.

Scope Of Delivery

• 1x Victron CYR020400000 Cyrix-i 24/48V-400A Battery Coupler
• 1x User Manual
