Victron Cyrix-Li-Charge 24/48V-230A

Victron Energy Cyrix-Li-Charge 24/48V-230A Battery Coupler

The Cyrix-Li-Charge 24/48V-230A Battery Coupler from Victron Energy is the perfect solution for your 12V and 24V LiFePO4 batteries. With a maximum current of 230A, it is an ideal addition to the VE.Bus BMS and is excellently suited for loads that the VE.Bus BMS cannot control independently.

Functionality Of The Cyrix Battery Coupler

The Victron Cyrix-Li-Load 24/48V-230A is a powerful, microprocessor-controlled relay that automatically connects batteries in parallel as soon as one of them reaches a certain voltage value. This indicates that the battery is being charged. If the voltage drops below the float voltage value, the Cyrix disconnects the batteries again. This prevents one or both batteries from being discharged.

How The Cyrix-Li-Charge 24/48V-230A Works

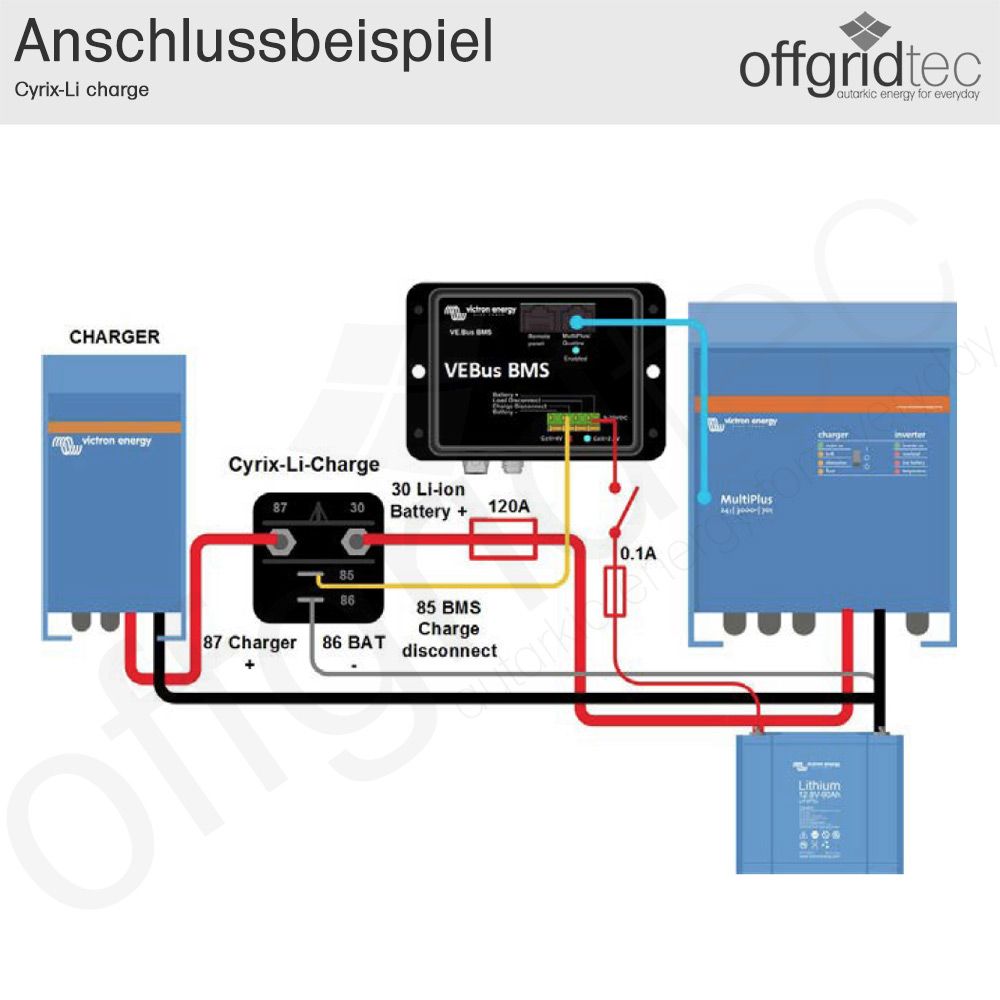

The Cyrix-Li-Charge 24/48V-230A connects a battery charger with a delay time of 3 seconds if the following conditions are met:

• The "Charge Disconnect" output of the VE.Bus BMS is active.
• It measures 13.7 V (or 27.4 V or 54.8 V) or more at its battery charger connection.
• It measures 2 V or more at its battery connection (remains open if not connected to the battery).

The Cyrix switches off immediately when its control output reaches the "free floating" state (open circuit) or indicates a cell overvoltage or cell overtemperature. In case of a cell overvoltage alarm, the Cyrix is briefly reset after stopping the charging process and reconnects the charger. After two unsuccessful attempts to reconnect the device, the delay time extends to 10 minutes. If the battery voltage is below 13.5 V (or 27 V or 54 V), the Cyrix switches off with a delay time of 1 hour.

Important Technical Features

Perfect Addition To The VE.Bus BMS

The Cyrix-Li-Charge is a central element of the protection measures for Victron LiFePO4 batteries. Although the VE.Bus BMS cannot directly control all loads or chargers, several VE.Bus BMS controllable Cyrix switches enable the safe shutdown of such devices.

Scope Of Delivery

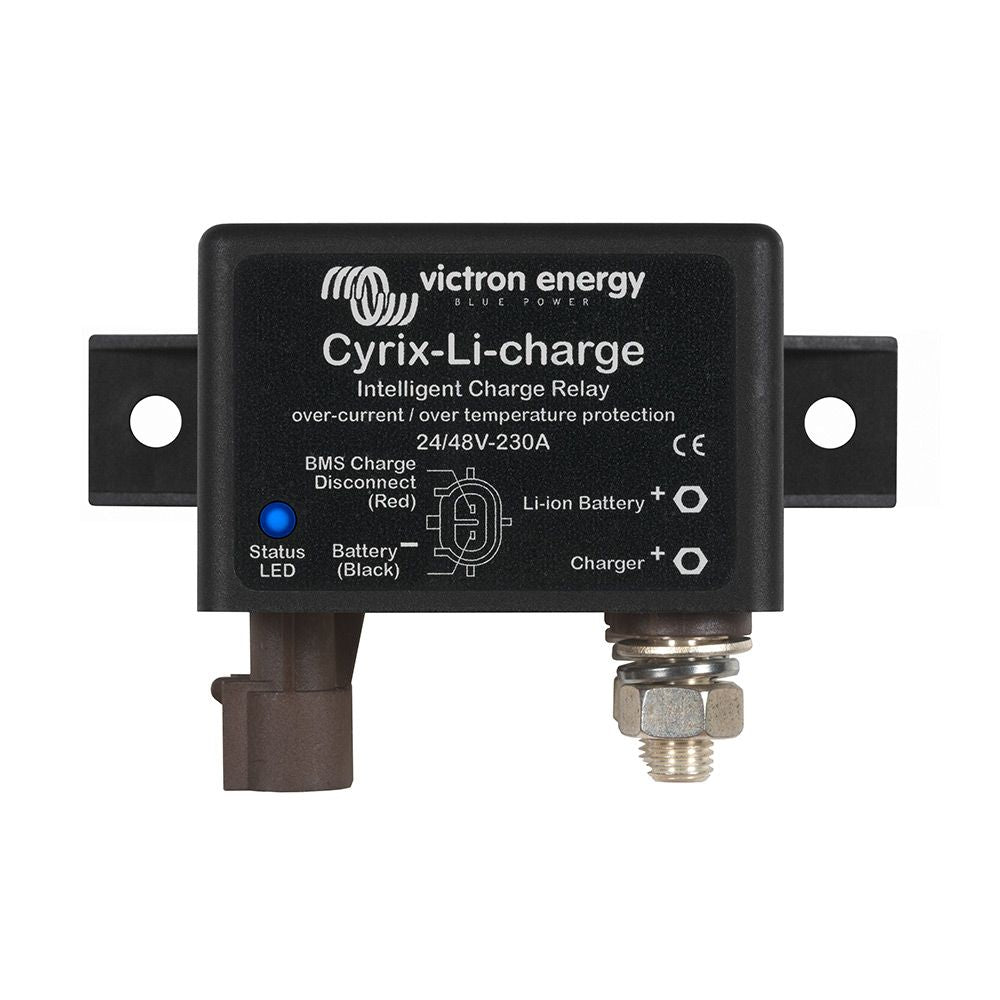

• 1x Victron Energy CYR020230430 Cyrix-Li-Charge 24/48V-230A Battery Coupler
• 1x Cyrix Connection Cable 1m
• 1x User Manual
