Wattstone 0-Degree Concrete Base for PV Modules Flat Roof Natural Grey

Wattstone 0 Degree Concrete Base

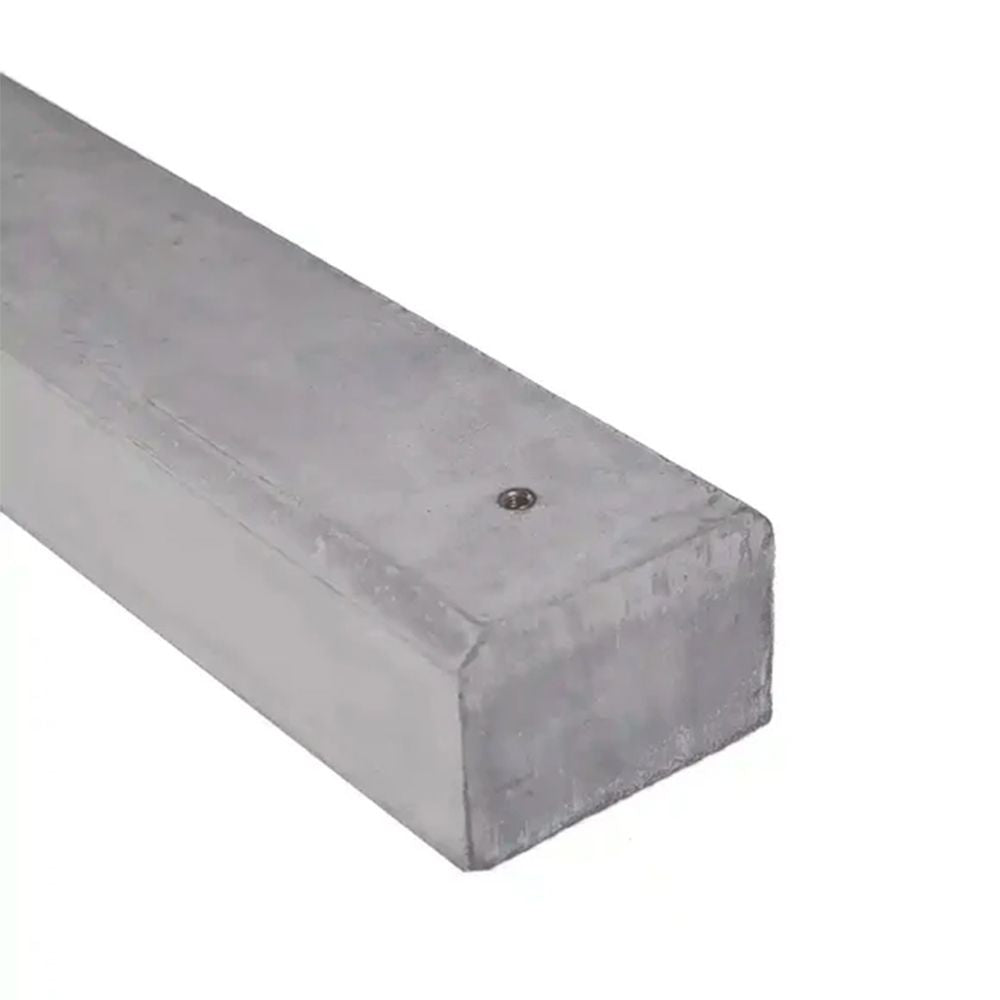

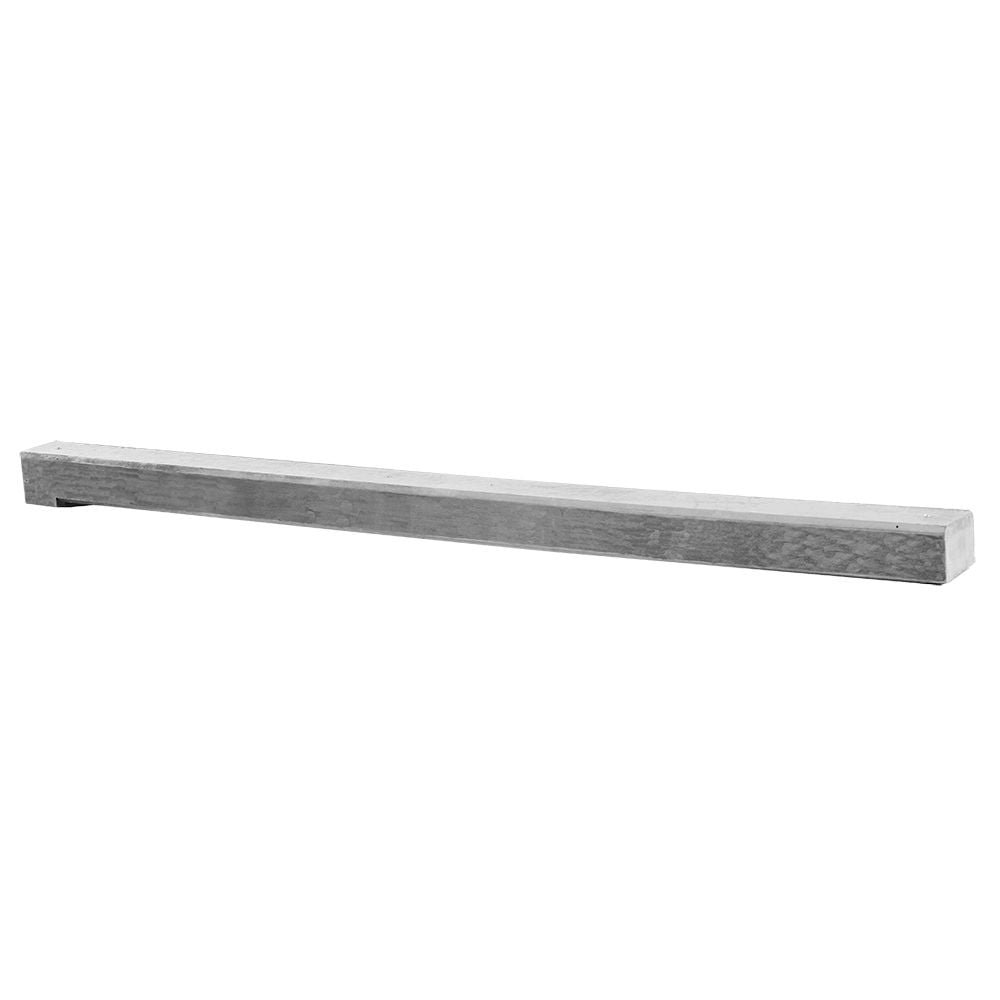

The Wattstone 0 Degree Concrete Base (MPN 7003N) offers a stable base for your solar modules and maximum flexibility. With this solution, you save yourself the drilling of the roof structure and benefit from easy installation. The high-quality L-stones with integrated M8 threads ensure that you can effortlessly install your solar modules.

Advantages

• Stable substructure and weighting in one
• No drilling of the roof structure necessary
• Easy and quick assembly without tools
• Concrete base made of fine-pored exposed concrete
• Integrated M8 threads for secure fastening

Assembly and Adaptation

The Flat Roof Mounting System is ideal for the individual mounting of one or more solar modules in any orientation. The 0 degree tilt angle optimizes the energy generation of your solar system.

Assembly Requirements

For the assembly of a PV module, you need the following components:

• 2 WATTSTONE Concrete Bases
• 4 suitable Module End Clamps with M8 Screws and Washers
• 8 Building Protection Mat Pads (Dimensions 150x150x5mm)
• 1 Allen Key 6mm

Special Features

The integrated M8 threads in the concrete base ensure secure fastening of the PV modules. Additionally, 2 threads for module fastening and 1 thread for the optional mounting of cable ducts or wind deflectors are already cast in.

Certification

The concrete base is wind tunnel tested (DIN EN 1991-1-4: 2021) and the friction coefficient was tested.

Scope of Delivery

• 1x Wattstone 0 Degree Concrete Base Flat Roof Natural Gray
