Wattstone 10 Degree Concrete Base for PV Modules Flat Roof Natural Grey

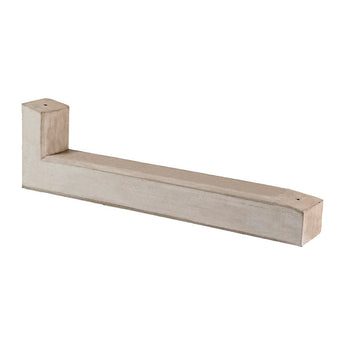

Wattstone 10 Degree Concrete Base

The Wattstone 10 Degree Concrete Base (MPN 7000N) offers the perfect solution for a stable substructure for your solar modules. With an inclination angle of 10 degrees, you maximize the energy production of your solar system while avoiding the need to drill into the roof structure.

Advantages

• Stable substructure and ballast in one
• No drilling into the roof structure required
• No complicated assembly with tools necessary
• Made from high-quality, fine-pored exposed concrete
• Integrated M8 threads for secure attachment
• Simple and quick assembly

Technical Data

Show details

• 2x Reinforcement Steel D=8mm

• Weight: 24kg

• Dimensions: 800 x 120 x 227 mm

• Color: Natural Gray

• 10 Degree inclination angle for PV modules

• Max. 5 Degree inclination angle of the substrate

• 60 cm distance between module rows

• Recommended orientation: East or West

Assembly Instructions

For the installation of a PV module, you will need the following components:

• 2 Wattstone concrete bases
• 4 suitable module end clamps each with M8 screws and washers
• 8 construction protection mats pads (dimensions 150x150x5mm)
• 1 angle wrench 6mm

Special Features

The integrated M8 threads in the concrete base allow for secure attachment of PV modules. Additionally, there are already 2 threads for module attachment and 1 thread for the optional installation of cable ducts or wind deflectors on the back.

Certification

• Wind tunnel tested (DIN EN 1991-1-4: 2021)
• Friction coefficient tested

Scope of Delivery

1x Wattstone 10 Degree Concrete Base Flat Roof Natural Gray
